National Instruments · PXI

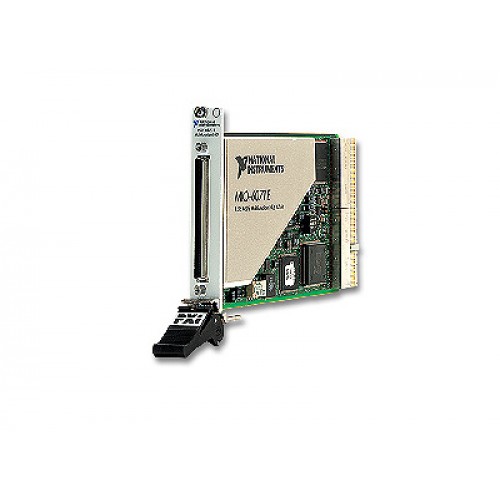

NI PXI-6071E (Legacy)

Name: NI PXI-6071E (Legacy)
Brand: National Instruments

The NI PXI-6071E is a legacy PXI multifunction data acquisition module with 64 analog inputs, two analog outputs, eight digital I/O lines and two counters/timers.

ManufacturerNational Instruments

ModelPXI-6071E

Part Number777676-01 · 184805-01

Product TypeMultifunction data acquisition module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-6071E

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs64 single-ended or 32 differential

ADC resolution12-bit

Maximum sampling rate1.25 MS/s

Analog outputs2

Digital I/O8 lines

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Part of NI's E Series family, the PXI-6071E combines measurement and control functions in a PXI module. NI identifies laboratory automation, research, design verification and manufacturing test as application areas.

NI's current product page uses the heading PXI-6071, while its part-number descriptions explicitly identify PXI-6071E. The catalog retains the PXI-6071E identity and Legacy designation.

Software-selectable single-ended or differential input configuration.
Bipolar and unipolar analog input ranges.
Two 24-bit up/down counters/timers.
Analog input data transfers through DMA, interrupts or programmed I/O.

Verified specifications

Technical data

Verified product specifications.

Analog input configuration	64 single-ended or 32 differential
Analog input resolution	12 bit
Maximum analog input sampling rate	1.25 MS/s
Analog input coupling	DC
Analog input FIFO	512 samples
Analog output channels	2 channels
Analog output resolution	12 bit
Digital I/O	8 lines; 5 V/TTL
Counters/timers	2 up/down counters; 24-bit resolution

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI

Instrumentation platform

PXI-6071E

Multifunction data acquisition module

Historical driver support

NI-DAQmx 8.3 lists the PXI-6071E among supported devices.

Verify the exact driver, operating system, chassis and cabling before integration; historical driver support does not establish current software compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI 6070E/6071E Family SpecificationsSpecifications · download.ni.com

Open →

NI PXI-6071 Product PageOfficial Product Page · ni.com

Open →

NI PXI-6071E Declaration of ConformityDeclaration Of Conformity · download.ni.com

Open →

NI-DAQmx 8.3 Readme and Supported DevicesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many differential inputs does the PXI-6071E provide?

It supports 32 differential inputs, or 64 inputs in single-ended configuration.

Does the module provide outputs as well as inputs?

Yes. NI lists two analog outputs, eight digital I/O lines and two counters/timers alongside the analog inputs.

Which NI part numbers are associated with this model?

NI lists 777676-01 and 184805-01 with PXI-6071E descriptions. These are manufacturer references, not confirmation of the identifier on an individual unit.
