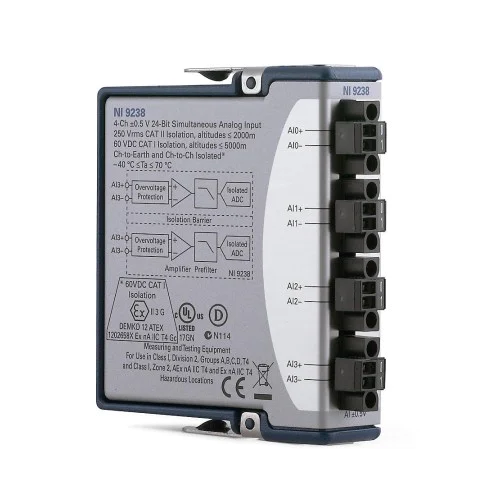

NI (National Instruments) NI-9238 ±500 mV, 50 kS/s/ch, 24-Bit, Simultaneous Input, 4-Channel C Series Voltage Input Module

1 image: Click to enlarge

NI (National Instruments) · C Series

NI-9238

The NI-9238 is a four-channel C Series voltage input module with a ±500 mV differential input range and 24-bit resolution. It supports simultaneous sampling at up to 50 kS/s per channel.

ManufacturerNI (National Instruments)

ModelNI-9238

Part Number783311-01 · 789130-01

Product Type±500 mV, 50 kS/s/ch, 24-Bit, Simultaneous Input, 4-Channel C Series Voltage Input Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: NI-9238

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Max Differential Analog Input Channels4

Supported Hardware PlatformC Series

Analog Input Voltage Range-500 mV to 500 mV

Analog Input Resolution24 bits

Maximum Sample Rate50 kS/s/ch

Analog Input Isolation250 Vrms Ch-Ch Isolation

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The NI-9238 acquires low-level voltage signals through four differential analog input channels. Its ±500 mV input range, 24-bit resolution and simultaneous sampling support measurement of multiple signals on a common acquisition timeline.

The module uses the C Series interface and includes anti-alias filtering and 250 Vrms channel-to-channel isolation. Consult the NI specifications and getting-started guide for wiring, measurement limits and system integration requirements.

Four differential analog input channels with a ±500 mV input range.
24-bit analog input resolution.
Simultaneous sampling at up to 50 kS/s per channel.
Anti-alias filtering.
250 Vrms channel-to-channel isolation.
Enclosed design with a specified operating temperature range of -40 °C to 70 °C.

Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels	4
Supported Hardware Platform	C Series
Conformal Coated	No
Analog Input Voltage Range	-500 mV to 500 mV
Enclosed	Yes
Analog Input Resolution	24 bits
Maximum Sample Rate	50 kS/s/ch
Analog Input Isolation	250 Vrms Ch-Ch Isolation
Simultaneous Sampling	Yes
Bus Connection	C Series
Filtering	Anti-Alias
Operating Temperature Range	-40 °C to 70 °C
NI part numbers	783311-01, 789130-01

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

C Series

Supported Hardware Platform

NI-9238

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Specifications (NI)Specifications · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

CompactDAQ

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What voltage range does the NI-9238 measure?

The NI-9238 has a -500 mV to 500 mV differential analog input range across four channels.

Does the NI-9238 sample all channels simultaneously?

Yes. It supports simultaneous sampling at a maximum rate of 50 kS/s per channel with 24-bit resolution.

Does the NI-9238 include filtering and isolation?

Yes. It provides anti-alias filtering and 250 Vrms channel-to-channel analog input isolation. Consult the official specifications for complete isolation ratings and operating limits.

Which part numbers are listed for the NI-9238?

The existing verified catalog data lists NI part numbers 783311-01 and 789130-01. Confirm the exact part-number configuration when selecting a module.
