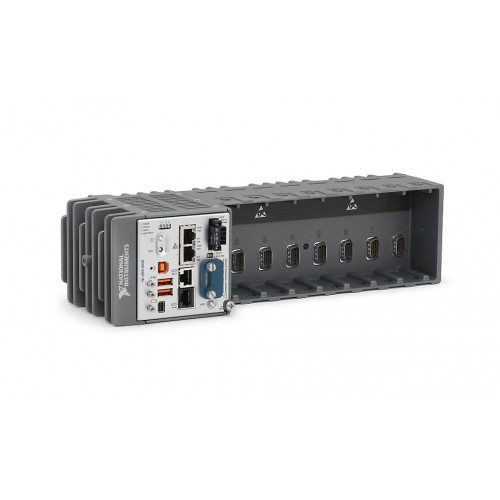

National Instruments cRIO-9036 Embedded real-time controller with integrated 8-slot chassis
1 image: Click to enlarge
National Instruments · CompactRIO

cRIO-9036

The NI cRIO-9036 is an extended-temperature, 8-slot CompactRIO controller for embedded control and monitoring. It combines a 1.33 GHz dual-core processor, NI Linux Real-Time, and a Kintex-7 70T FPGA.

ManufacturerNational Instruments
ModelcRIO-9036
Part Number783849-01
Product TypeEmbedded real-time controller with integrated 8-slot chassis
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9036

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Platform8-slot CompactRIO
Processor1.33 GHz dual-core Intel Atom
FPGAKintex-7 70T
Memory1 GB DRAM; 4 GB storage
Operating temperature-40 to 70 °C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9036 brings a real-time processor and reconfigurable FPGA together in a fanless CompactRIO controller. Its eight-slot configuration and extended operating temperature range suit embedded control and monitoring systems.

For networked equipment and local interaction, the controller provides dual Gigabit Ethernet, USB, RS-232, and Mini DisplayPort connections. The display connection supports a local human-machine interface, while the SDHC slot provides removable storage.

  • Real-time processor running NI Linux Real-Time.
  • Reconfigurable Xilinx Kintex-7 7K70T FPGA.
  • Fanless embedded design with an extended operating temperature range.
  • Mini DisplayPort for a local HMI.
  • SD and SDHC removable storage support, up to 32 GB.
Verified specifications

Technical data

Verified product specifications.

I/O slots8 slots
ProcessorDual-core Intel Atom
Processor frequency1.33 GHz
DRAM1 GB
Solid-state storage4 GB
FPGAXilinx Kintex-7 7K70T
Operating temperature range-40 to 70 °C
Operating systemNI Linux Real-Time
EthernetTwo tri-speed RJ-45 Gigabit Ethernet ports
USB portsTwo host ports and one device port
Serial portsTwo RS-232 ports
Display interfaceMini DisplayPort
Removable storageSD/SDHC, up to 32 GB; user supplied
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control and monitoring platform

cRIO-9036

8-slot real-time controller with integrated FPGA

Real-time execution

NI Linux Real-Time on a dual-core processor

Confirm module support and software-version requirements for the intended system before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9036 Product PageProduct Page · ni.com
Open →
NI cRIO-9036 SpecificationsSpecifications · download.ni.com
Open →
cRIO-9036 Getting Started GuideGetting Started Guide · download.ni.com
Open →
CompactRIO Controller Family ComparisonTechnical resource
Open →
CompactRIO Industrial SD Card CompatibilityTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
cRIO-9035View product →
Related model
cRIO-9037View product →
Related model
cRIO-9031View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many slots does the cRIO-9036 provide?

The cRIO-9036 provides eight I/O slots.

What is its operating temperature range?

NI specifies an operating temperature range of -40 to 70 °C. Consult the specifications for installation and environmental requirements.

Can the controller support a local operator interface?

Yes. NI identifies the Mini DisplayPort connection as a way to add a local human-machine interface.

Does it support removable storage?

Yes. The SD card slot supports SD and SDHC standards with user-supplied storage up to 32 GB.
