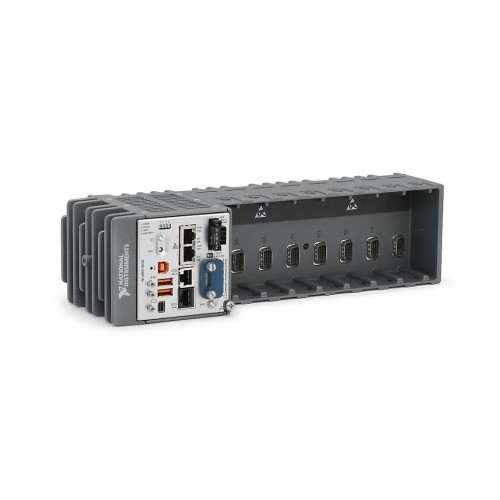

The NI cRIO-9035 is an eight-slot CompactRIO controller combining a real-time processor and reconfigurable FPGA for embedded control and monitoring.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The fanless controller runs NI Linux Real-Time and supports an embedded user interface. Mini DisplayPort provides a connection for a local HMI, while Ethernet, USB and an SDHC slot provide networking, peripheral and removable-storage options.
NI documents the standard cRIO-9035 and cRIO-9035 Sync together. Their software requirements differ, so establish the exact hardware variant before selecting a development environment.
Verified product specifications.
| CPU | Intel Atom E3825, dual-core |
|---|---|
| CPU frequency | 1.33 GHz |
| Operating system | NI Linux Real-Time, 64-bit |
| RAM | 1 GB DDR3L |
| Solid-state storage | 4 GB |
| Slot count | 8 |
| FPGA | Xilinx Kintex-7 7K70T |
| Power input range, V1 and V2 | 9–30 VDC |
| Maximum system power consumption | 46 W |
| Operating temperature | -20 to 55; mounting requirements apply °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Embedded control platform
Eight-slot embedded controller
NI identifies 783848-01 as the standard cRIO-9035.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
LabVIEW FPGA Module is required to program the user-accessible FPGA, but is not required for Scan Interface mode.
Yes. NI describes Mini DisplayPort support for a local HMI. Its display accessory guide lists Mini DisplayPort adapters for VGA, DVI and DisplayPort.
