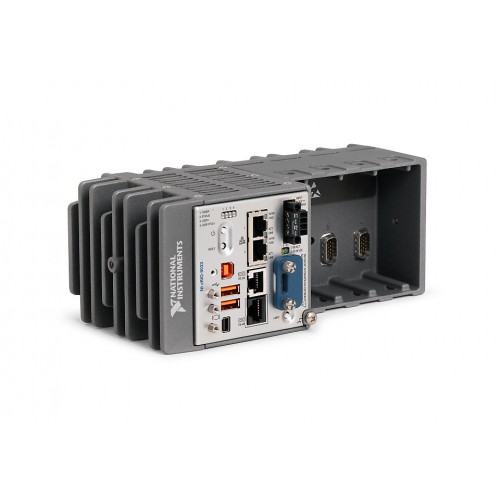

National Instruments cRIO-9031 4-slot embedded real-time controller

1 image: Click to enlarge

National Instruments · CompactRIO

cRIO-9031

Name: cRIO-9031
Brand: National Instruments

The NI cRIO-9031 is a fanless, 4-slot CompactRIO controller for embedded control and monitoring. It combines a 1.33 GHz dual-core processor, a Kintex-7 70T FPGA, and NI Linux Real-Time.

ManufacturerNational Instruments

ModelcRIO-9031

Part Number783451-01

Product Type4-slot embedded real-time controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9031

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Platform4-slot CompactRIO

Processor1.33 GHz dual-core Intel Atom

Memory and storage1 GB RAM; 4 GB storage

FPGAKintex-7 70T

Operating temperature-40 °C to 70 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The cRIO-9031 integrates real-time processing and reconfigurable FPGA logic in a CompactRIO controller with four module slots. Its extended operating temperature range distinguishes it from the otherwise similarly configured cRIO-9030.

Dual Gigabit Ethernet ports support network connectivity, while USB and removable SDHC storage provide additional peripheral and data-storage options. A Mini DisplayPort supports a local human-machine interface.

Fanless embedded construction for control and monitoring systems.
Real-time processor paired with a user-programmable Kintex-7 FPGA.
Two Gigabit Ethernet ports and three USB ports: two host and one device.
Mini DisplayPort for a local operator interface and an SDHC slot for removable storage.

Verified specifications

Technical data

Verified product specifications.

Module slots	4
CPU	Intel Atom E3825, dual-core
CPU frequency	1.33 GHz
Operating system	NI Linux Real-Time (64-bit)
RAM	1 GB DDR3L
Solid-state storage	4 GB
FPGA	Xilinx Kintex-7 7K70T
Ethernet	2 ports; 10/100/1000 Mb/s, auto-negotiated
USB	USB 2.0 Hi-Speed; 2 Type-A host ports, 1 Type-B device port
Removable storage	SD and SDHC; up to 32 GB
Power input	9 to 30 V DC at V1 and V2
Maximum power consumption	40; fully populated, high-stress system under NI's stated conditions W
Operating temperature range	-40 to 70 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control platform

cRIO-9031

4-slot real-time controller with integrated FPGA

Software workflow

LabVIEW Real-Time for processor applications; LabVIEW FPGA for custom FPGA programming.

Check module-specific power requirements and the software support matrix before configuring a system.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9031 Product PageProduct Page · ni.com

Open →

cRIO-9031 SpecificationsSpecifications · ni.com

Open →

cRIO-903x Getting StartedGetting-started Guide · ni.com

Open →

CompactRIO Controller Family ComparisonTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How does the cRIO-9031 differ from the cRIO-9030?

Both have four slots, a 1.33 GHz dual-core processor, 1 GB RAM, 4 GB storage, and a Kintex-7 70T FPGA. The cRIO-9031 has a -40 °C to 70 °C operating range, compared with -20 °C to 55 °C for the cRIO-9030.

Is LabVIEW FPGA required for every application?

No. NI states that LabVIEW FPGA Module is not required for Scan Interface mode. It is required to program the controller's user-accessible FPGA.

Can the cRIO-9031 connect to a local display?

Yes. The Mini DisplayPort supports a local human-machine interface.
