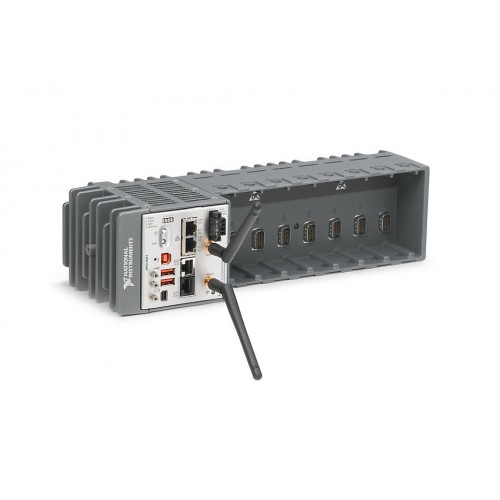

National Instruments cRIO-9037 Embedded CompactRIO controller
1 image: Click to enlarge
National Instruments · CompactRIO

cRIO-9037

The National Instruments cRIO-9037 is an 8-slot CompactRIO controller combining a 1.33 GHz dual-core Intel Atom processor with a Kintex-7 160T FPGA. It provides 2 GB RAM and 8 GB solid-state storage.

ManufacturerNational Instruments
ModelcRIO-9037
Product TypeEmbedded CompactRIO controller
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9037

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
PlatformCompactRIO, 8 I/O slots
Processor1.33 GHz dual-core Intel Atom
FPGAKintex-7 160T
Memory and storage2 GB RAM; 8 GB solid-state storage
WirelessDual-band 802.11 a/b/g/n
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The cRIO-9037 belongs to NI's CompactRIO controller family. Its eight-slot format combines processor-based execution and a reconfigurable FPGA in one embedded controller.

NI documents a real-time processor running NI Linux Real-Time, embedded user interface capability and dual-band wireless communication for connections to HMIs, the cloud and other devices.

  • Eight I/O slots in the CompactRIO platform.
  • Dual-core Intel Atom processing paired with a Kintex-7 160T FPGA.
  • Embedded user interface capability.
  • Dual-band wireless connectivity for networked devices.
Verified specifications

Technical data

Verified product specifications.

I/O slots8 slots
CPUIntel Atom E3825, 2 cores
CPU frequency1.33 GHz
Operating systemNI Linux Real-Time, 64-bit
FPGAXilinx Kintex-7 7K160T
Processor memory2 GB DDR3L
Solid-state storage8 GB
Ethernet2 ports; 10/100/1000 Mbit/s
WirelessIEEE 802.11 a/b/g/n; 2.4 and 5 GHz; client or access point
USBUSB 2.0; 2 Type-A host ports and 1 Type-B device port
Serial interfacesRS-232 and RS-485/422
Power inputs V1 and V29 to 30 VDC
Operating temperature-20 to 55; mounting requirements apply °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded controller platform

cRIO-9037

8-slot controller

Firmware resources

NI provides a dedicated cRIO-9032/9037 firmware and additional drivers download page.

Verify module support and software versions before configuring the system.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9037 SpecificationsSpecifications · download.ni.com
Open →
NI cRIO-9037 Getting Started GuideGetting Started Guide · download.ni.com
Open →
cRIO-9037 Dimensional DrawingsDimensional Drawings And CAD · ni.com
Open →
cRIO-9032/9037 Firmware and Additional DriversTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
cRIO-9032View product →
Related model
cRIO-9039View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many I/O slots does the cRIO-9037 have?

The cRIO-9037 has eight I/O slots.

Does the cRIO-9037 support Wi-Fi?

Yes. It supports dual-band IEEE 802.11 a/b/g/n wireless.

Is LabVIEW FPGA Module required?

It is required to program the user-accessible FPGA, but not for Scan Interface mode.
