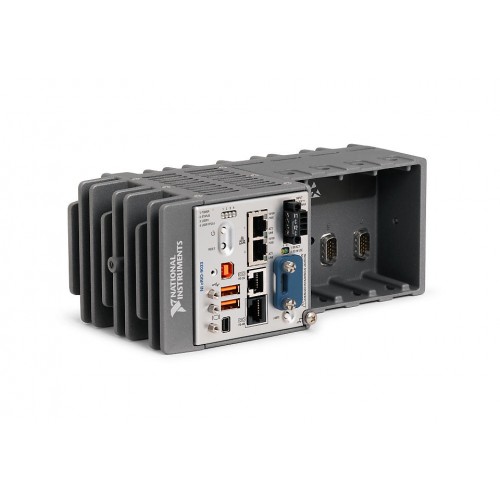

National Instruments cRIO-9033 Embedded CompactRIO controller

1 image: Click to enlarge

National Instruments · CompactRIO

cRIO-9033

The NI cRIO-9033 is a fanless, four-slot CompactRIO controller for embedded control and monitoring. It combines a real-time processor with a Kintex-7 160T FPGA.

ManufacturerNational Instruments

ModelcRIO-9033

Part Number783452-01

Product TypeEmbedded CompactRIO controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9033

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

I/O slots4

Processor1.33 GHz dual-core Intel Atom

FPGAKintex-7 160T

Memory and storage2 GB RAM; 8 GB storage

Operating temperature-40 to 70 °C; mounting requirements apply

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Within the CompactRIO platform, the cRIO-9033 provides four I/O slots, an embedded processor running NI Linux Real-Time, and a reconfigurable FPGA.

Dual Gigabit Ethernet ports provide network connectivity, while USB, serial, and removable SD storage interfaces support peripheral connections. Mini DisplayPort enables a local human-machine interface.

Fanless embedded design for control and monitoring.
Two Ethernet ports supporting 10, 100, and 1000 Mbps.
Two USB host ports and one USB device port.
SD and SDHC card support.

Verified specifications

Technical data

Verified product specifications.

Processor	Intel Atom E3825, dual-core
CPU frequency	1.33 GHz
Operating system	NI Linux Real-Time, 64-bit
I/O slot count	4
Processor RAM	2 GB DDR3L
Solid-state storage	8 GB
FPGA	Xilinx Kintex-7 7K160T
Serial interfaces	RS-232 and RS-485/422
Power input range	9 to 30, on V1 and V2 VDC
Maximum power consumption	40; fully populated system under specified maximum-load conditions W
Operating temperature	-40 to 70; mounting-dependent derating may apply °C
Dimensions, unloaded	219.5 × 88.1 × 109.2 mm
Weight, unloaded	1800 g

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control platform

cRIO-9033

Four-slot controller with real-time processor and FPGA

FPGA development

LabVIEW FPGA Module is required to program the user-accessible FPGA, but is not required for Scan Interface mode.

Check module-specific power requirements and follow NI mounting instructions to avoid temperature derating.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9033 SpecificationsSpecifications PDF · download.ni.com

Open →

NI cRIO-9033 Product PageManufacturer Product Page · ni.com

Open →

CompactRIO Controllers Product FlyerPlatform Comparison PDF · ni.com

Open →

CompactRIO Module Immobilization Accessory CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How does the cRIO-9033 differ from the cRIO-9032?

NI lists both with four slots, a 1.33 GHz dual-core processor, Kintex-7 160T FPGA, 2 GB RAM, and 8 GB storage. Their listed temperature ranges differ: -40 to 70 °C for cRIO-9033 and -20 to 55 °C for cRIO-9032.

Can the cRIO-9033 support a local HMI?

Yes. NI identifies Mini DisplayPort as the connection for adding a local human-machine interface.
