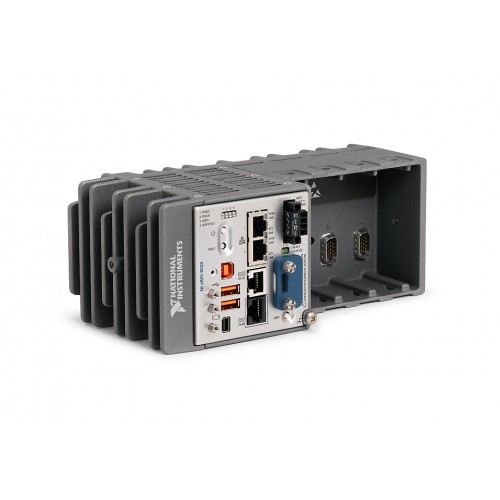

National Instruments cRIO-9030 Embedded CompactRIO controller

1 image: Click to enlarge

National Instruments · CompactRIO

cRIO-9030

Name: cRIO-9030
Brand: National Instruments

The NI cRIO-9030 is a four-slot, fanless CompactRIO embedded controller for advanced control and monitoring. It combines a 1.33 GHz dual-core processor, NI Linux Real-Time, and a Kintex-7 70T FPGA.

ManufacturerNational Instruments

ModelcRIO-9030

Part Number783450-01

Product TypeEmbedded CompactRIO controller

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: cRIO-9030

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

I/O slots4

Processor1.33 GHz dual-core Intel Atom

FPGAKintex-7 70T

Memory and storage1 GB RAM; 4 GB storage

Operating temperature-20 to 55 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The cRIO-9030 places real-time processing and reconfigurable FPGA logic in a four-slot CompactRIO controller. Its fanless design supports embedded control and monitoring applications.

Two Gigabit Ethernet ports provide network connectivity, while USB, serial interfaces, and removable SD storage support local peripherals and data handling. Mini DisplayPort enables a local human-machine interface.

Integrated real-time processor and user-programmable Kintex-7 FPGA.
Two tri-speed RJ-45 Gigabit Ethernet ports.
Two USB host ports and one USB device port.
Mini DisplayPort for an embedded local user interface.

Verified specifications

Technical data

Verified product specifications.

Processor model	Intel Atom E3825
Processor frequency	1.33 GHz
Processor cores	2
Operating system	NI Linux Real-Time, 64-bit
Module slots	4
Processor RAM	1 GB DDR3L
Internal solid-state storage	4 GB
FPGA	Xilinx Kintex-7 7K70T
Ethernet	2 ports; 10/100/1000 Mbps, auto-negotiated
USB	USB 2.0 Hi-Speed; two Type-A host ports and one Type-B device port
Serial interfaces	RS-232 and RS-485/422
Removable storage support	SD and SDHC; up to 32 GB
DC input range	9 to 30 on each V1 and V2 input VDC
Maximum power consumption	40; fully populated system under specified maximum-load conditions W
Operating temperature	-20 to 55; mounting-dependent derating may apply °C
Dimensions, unloaded	219.5 × 88.1 × 109.2 mm
Weight, unloaded	1800 g

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO

Embedded control and monitoring platform

cRIO-9030

Four-slot controller with real-time processor and FPGA

FPGA development

LabVIEW FPGA Module is required to program the user-accessible FPGA; it is not required for Scan Interface mode.

Check module power requirements and follow NI mounting instructions to avoid temperature derating.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI cRIO-9030 Product PageProduct Page · ni.com

Open →

NI cRIO-9030 SpecificationsSpecifications PDF · download.ni.com

Open →

CompactRIO Controller Comparison FlyerTechnical resource

Open →

CompactRIO Mounting Accessory CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many module slots does the cRIO-9030 have?

The cRIO-9030 has four module slots.

Can the cRIO-9030 support a local display?

Yes. Its Mini DisplayPort supports a local human-machine interface.

Is LabVIEW FPGA Module required?

It is required for programming the user-accessible FPGA, but not for Scan Interface mode.

What distinguishes the cRIO-9031 from the cRIO-9030?

Both have four slots, a 1.33 GHz dual-core processor, a Kintex-7 70T FPGA, 1 GB RAM, and 4 GB storage. The cRIO-9031 extends the operating temperature range to -40 to 70 °C, compared with -20 to 55 °C for the cRIO-9030.
