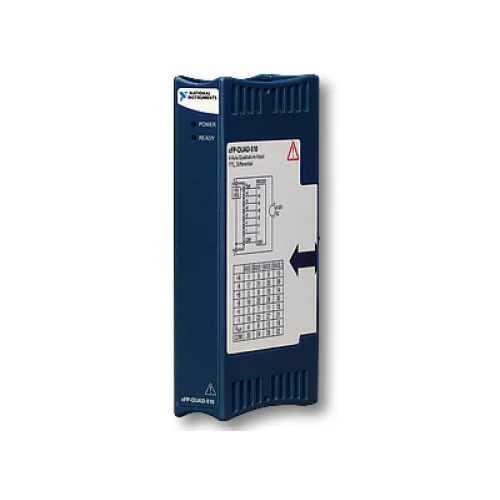

The **cFP-QUAD-510** I/O module is designed for precise quadrature encoder signal processing, making it ideal for industrial automation, robotics, and motion control applications. This module supports high-resolution input with robust features to measure position, speed, and direction from rotary encoders, providing accurate feedback for motion control systems.
Key Features & Specifications
Feature
Specification
Form Factor
Modular Design
Channels
4
Input Type
Quadrature Encoder
Input Voltage Range
5V to 24V
Frequency Response
Up to 1 MHz
Resolution
Up to 32-bit
Operating Temperature
-40°C to 70°C
Dimensions
5.5 x 3.5 x 1.5 in (140 x 90 x 38 mm)
Why It Matters
High-Resolution Feedback: The **cFP-QUAD-510** module provides high-resolution quadrature encoder inputs with up to 32-bit resolution, ensuring precise measurement of position, speed, and direction in motion control applications.
High Frequency Response: With a frequency response of up to 1 MHz, the module can accurately capture fast changes in encoder signals, making it suitable for high-speed applications.
Flexible Input Voltage Range: Supporting a voltage range from 5V to 24V, the **cFP-QUAD-510** can be used with a wide variety of quadrature encoders and industrial systems.
Alternative Models from Other Manufacturers
Feature
cFP-QUAD-510
NI PXIe-6624
Keysight 33500B
Advantech PCI-1711A
Form Factor
Modular
PXI
Bench
PCI
Channels
4
4
2
4
Input Type
Quadrature Encoder
Quadrature Encoder
Pulse/Quadrature
Digital I/O
Frequency Response
1 MHz
20 MHz
100 kHz
500 kHz
Resolution
Up to 32-bit
Up to 32-bit
16-bit
Not available
Customer Testimonials
“The **cFP-QUAD-510** has been a reliable solution for our motion control systems. Its high-resolution inputs and fast response time have helped improve our overall system performance.” – Automation Engineer, Robotics
“We use the **cFP-QUAD-510** in our testing systems for precise position feedback from rotary encoders. Its versatility and high-speed response make it perfect for our applications.” – Test Engineer, Automotive
User Manual & Documentation
For complete setup instructions, configuration, and troubleshooting, please refer to the official cFP-QUAD-510 User Manual.
Conclusion & Final Recommendation
The **cFP-QUAD-510** I/O module provides precise and high-speed quadrature encoder signal processing, making it an excellent solution for motion control, robotics, and industrial automation systems. With its high-resolution inputs, wide frequency response, and rugged design, it is perfect for real-time feedback applications in demanding environments.
Order the **cFP-QUAD-510** today to enhance your motion control and feedback systems with unmatched accuracy and performance!
