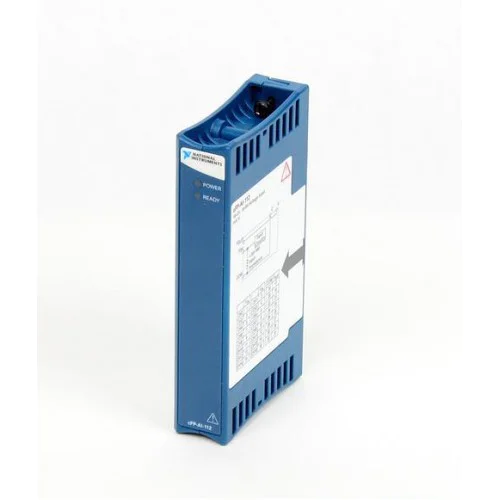

The CFP-AI-112 is a 16-channel voltage input module for Compact FieldPoint systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
NI documents this model as cFP-AI-112. It mounts on a cFP-BP-x backplane and uses cFP-CB-x connector blocks for field wiring.
Verified product specifications.
| Channels | 16 |
|---|---|
| Nominal input ranges | 0–1, 0–5, 0–10, ±0.06, ±0.3, ±1, ±5, ±10 V |
| ADC resolution | 16 at 50/60 Hz; 10 at 500 Hz bits |
| Operating temperature | −40 to 70 °C |
| Channel-to-ground isolation | 250 continuous, CAT II Vrms |
| Channel-to-channel isolation | None |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Platform
Voltage input
Mounts on cFP-BP-x backplanes.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. Resolution is 16 bits with 50/60 Hz filtering and 10 bits with 500 Hz filtering.
No. Update timing depends on filter settings and input ranges in use.
