CFP-CB-3

Name: CFP-CB-3
Brand: National Instruments

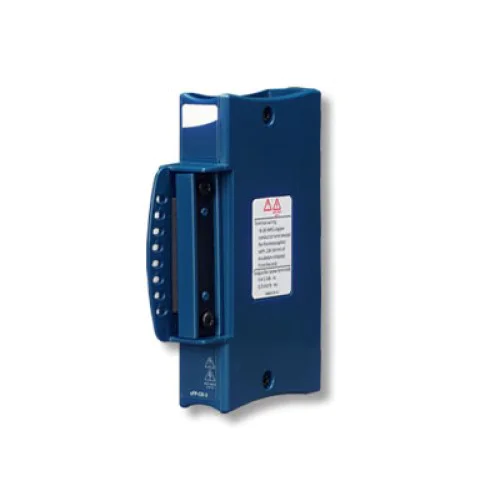

The NI CFP-CB-3 is an isothermal Compact FieldPoint connector block for thermocouple wiring. It is designed for use with cFP-TC-120 and cFP-TC-125 thermocouple input modules.

ManufacturerNational Instruments

ModelCFP-CB-3

Product TypeIsothermal connector block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: CFP-CB-3

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Product roleThermocouple connector block

Terminal count18

Thermal designIsothermal construction

Operating temperature−40 to 70 °C

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The CFP-CB-3 provides field-wiring connections rather than functioning as a standalone acquisition module. Its isothermal construction minimizes temperature gradients at the thermocouple terminals.

A built-in thermistor supports cold-junction compensation. NI recommends this connector block for thermocouple measurements where increased accuracy is important.

Isothermal terminal construction for thermocouple connections.
Built-in thermistor for cold-junction compensation.
Strain-relief bar and wire tie provisions for secure wiring.

Verified specifications

Technical data

Verified product specifications.

Terminal count	18 terminals
Terminal type	Screw
I/O connector	37-pin
Operating temperature	−40 to 70 °C
Storage temperature	−55 to 85 °C
Weight	201 g
Terminal wire size	16–26 AWG; copper unless the sensing device requires another wire type
Screw-terminal tightening torque	0.5–0.6 N·m
