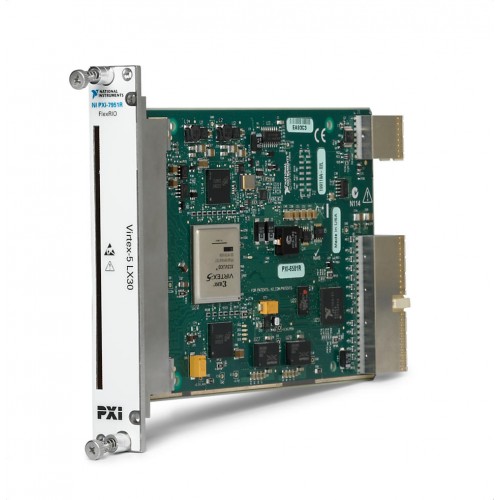

The National Instruments PXI-7951 is a FlexRIO FPGA module built around a Virtex-5 LX30 FPGA. NI specifications identify this module as PXI-7951R.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The PXI-7951 provides user-programmable FPGA resources within the modular FlexRIO architecture. NI documents LabVIEW FPGA as the programming environment for these modules.
A FlexRIO adapter module defines the physical measurement inputs and outputs. Select the adapter for the required signals and verify its support for the PXI-7951 before configuring a system.
Verified product specifications.
| FPGA | Virtex-5 LX30 |
|---|---|
| FPGA slices | 4800 slices |
| Embedded block RAM | 1152 kbit |
| DSP48 slices | 32 slices |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular FPGA platform
FPGA module; designated PXI-7951R in NI specifications
Defined by the selected FlexRIO adapter module.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI specifies a Virtex-5 LX30 with 4,800 FPGA slices.
NI lists 0 MB of DRAM. The FPGA includes 1,152 kbit of embedded block RAM.
An adapter defines physical I/O. NI also documents operation without an adapter for FPGA coprocessing or peer-to-peer streaming.
