National Instruments · PXI

PXI-7952

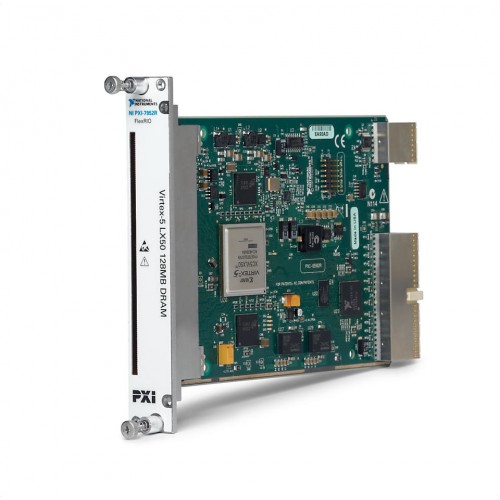

The National Instruments PXI-7952 is a FlexRIO FPGA module documented by NI as PXI-7952R. It combines a Virtex-5 LX50 FPGA with 128 MB onboard DRAM and uses a separate FlexRIO adapter module to define physical I/O.

ManufacturerNational Instruments

ModelPXI-7952

Product TypeFlexRIO FPGA module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7952

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformPXI FlexRIO

FPGAVirtex-5 LX50

FPGA slices7,200

Onboard DRAM128 MB

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This module provides the programmable FPGA portion of a modular FlexRIO system. An attached adapter module determines the physical inputs and outputs, allowing the FPGA processing hardware and signal interface to be selected separately.

NI lists PXI-7952 as the product model on its certification page and PXI-7952R in the associated hardware description. The catalog model name is retained here; use PXI-7952R when locating the module in NI's installation guide and FPGA resource tables.

Virtex-5 LX50 FPGA with 7,200 FPGA slices.
48 DSP48 slices and 1,728 kbit embedded block RAM.
Two 64 MB DRAM banks, each with an 800 MB/s maximum theoretical bandwidth.
Modular I/O architecture with a separate FlexRIO adapter module.

Verified specifications

Technical data

Verified product specifications.

FPGA	Virtex-5 LX50
FPGA slices	7200 slices
DSP48 slices	48 slices
Embedded block RAM	1728 kbit
Onboard DRAM	128 MB
DRAM bank configuration	2 banks, 64 MB per bank
Maximum theoretical DRAM bandwidth per bank	800 MB/s
Default timebase	40 MHz

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI / FlexRIO

Modular instrumentation platform and FPGA hardware family

PXI-7952

FPGA module; identified as PXI-7952R in technical documentation

Signal interface

A separate FlexRIO adapter module defines physical I/O.

Confirm the selected adapter module and software version support before integrating the system.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI FlexRIO FPGA Module Installation Guide and SpecificationsInstallation Guide And Specifications · docs-be.ni.com

Open →

PXI-7952 Product CertificationsProduct Certification Page · ni.com

Open →

Introduction to Using DRAM with NI FPGA DevicesTechnical resource

Open →

Slices on an FPGA ChipTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Electronic Test and Instrumentation

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Why does NI documentation use PXI-7952R?

NI's PXI-7952 certification page identifies the associated hardware as PXI-7952R. The installation guide also uses PXI-7952R; this card preserves the catalog name PXI-7952.

How much onboard DRAM does the module provide?

It provides 128 MB, organized as two 64 MB banks.

Does the FPGA module alone define the measurement I/O?

No. In this modular FlexRIO architecture, the adapter module defines the physical inputs and outputs.
