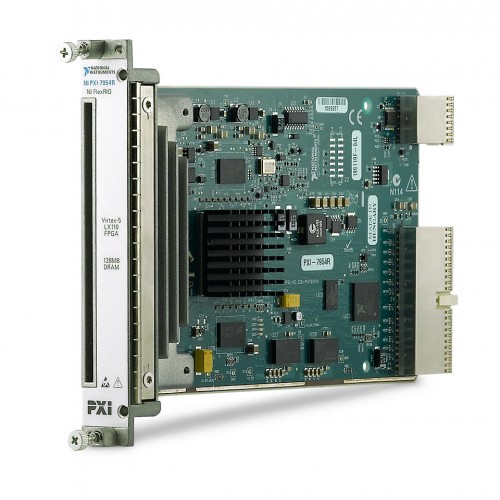

PXI-7954

This catalog record is named PXI-7954. Its supplied FPGA and memory details match NI's PXI-7954R FlexRIO FPGA module; confirm the complete hardware designation before relying on the reference specifications below.

ManufacturerNational Instruments

ModelPXI-7954

Product TypeFlexRIO FPGA module; PXI-7954R reference identity requires confirmation

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7954

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Official reference modelPXI-7954R; catalog suffix requires confirmation

Reference FPGAVirtex-5 LX110

Reference FPGA slices17,280

Reference onboard DRAM128 MB, arranged as two 64 MB banks
