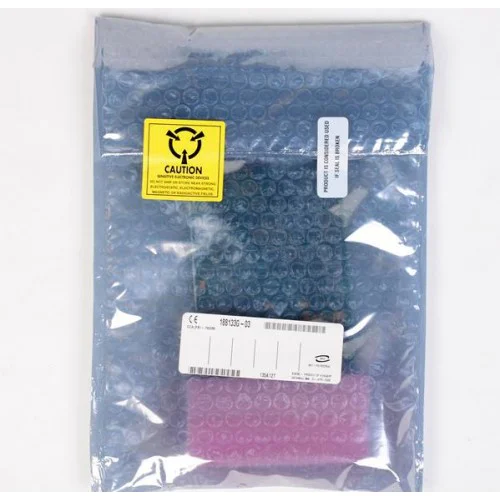

PXI-7833R

The National Instruments PXI-7833R is an R Series multifunction reconfigurable I/O module combining a Virtex-II V3000 FPGA with analog input, analog output and digital I/O.

ManufacturerNational Instruments

ModelPXI-7833R

Product TypeMultifunction reconfigurable I/O module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7833R

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

FPGAVirtex-II, 3 million gates

Analog I/O8 inputs and 8 outputs; 16-bit resolution

Digital I/O96 TTL-compatible lines

Development softwareLabVIEW FPGA Module

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-7833R belongs to NI's FPGA-based R Series. NI identifies its FPGA as a Virtex-II device with 3 million gates and 14,336 slices.

Integration requires attention to the software toolchain. NI's historical support table lists the PXI-7833R with the LabVIEW FPGA Module and NI-RIO; those minimum-version records should not be interpreted as confirmation of support in a current software release.

User-reconfigurable Virtex-II FPGA architecture.
Software-selectable differential, RSE or NRSE analog input configuration.
LabVIEW FPGA-based I/O configuration.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	8 channels
Analog input resolution	16 bits
Maximum analog input sampling rate	200 per channel kS/s
Analog input range	±10 V
Analog output channels	8 channels
Analog output resolution	16 bits
Maximum analog output update rate	1 MS/s
Analog output range	±10 V
Digital I/O lines	96; TTL-compatible
FPGA	Virtex-II V3000
I/O connectors	Three 68-pin female VHDCI connectors

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI R Series

Modular reconfigurable I/O platform

PXI-7833R

Multifunction FPGA I/O module

Software planning

Check device support for the intended NI-RIO and LabVIEW FPGA versions before integration.

At an 80 MHz timebase, NI specifies a 0–45 °C operating range in PXI-1000/B and PXI-101X chassis.
