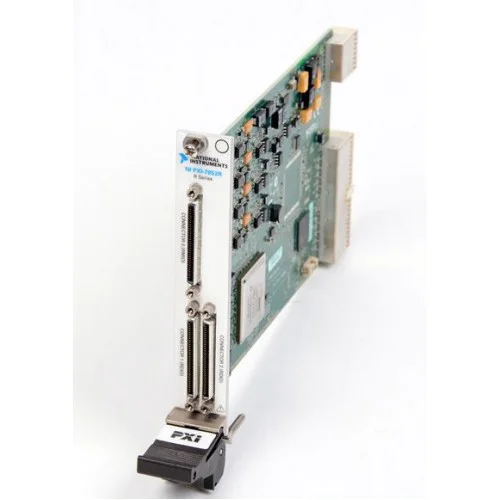

PXI-7852R

The NI PXI-7852R is an R Series multifunction reconfigurable I/O module combining a Virtex-5 LX50 FPGA with 8 analog inputs, 8 analog outputs and 96 digital I/O lines.

ManufacturerNational Instruments

ModelPXI-7852R

Part Number780340-01

Product TypeMultifunction Reconfigurable I/O Module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7852R

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

FPGAVirtex-5 LX50

Analog inputs8 channels; 16-bit; up to 750 kS/s per channel

Analog outputs8 channels; 16-bit; up to 1 MS/s

Analog ranges±10 V input and output

Digital I/O96 lines
