National Instruments · PXI

PXI-7811R

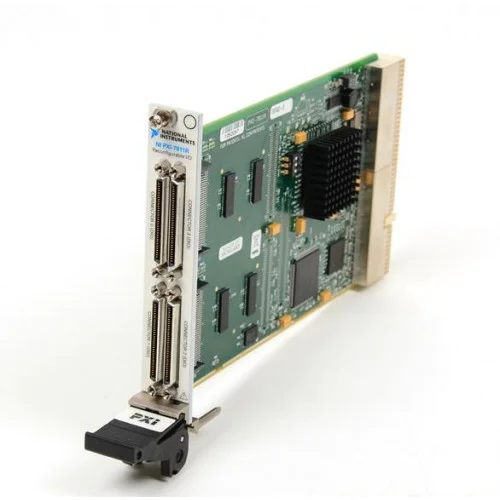

The National Instruments PXI-7811R is an R Series digital reconfigurable I/O module with 160 bidirectional digital lines and a Virtex-II XC2V1000 FPGA. LabVIEW FPGA lets users define its hardware timing and I/O behavior.

ManufacturerNational Instruments

ModelPXI-7811R

Product TypeDigital reconfigurable I/O FPGA module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: PXI-7811R

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Digital I/O160 bidirectional lines

FPGAVirtex-II XC2V1000

ProgrammingLabVIEW FPGA Module

Digital logicTTL-compatible

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The PXI-7811R provides digital-only I/O controlled by a user-programmable FPGA. Its 160 lines are distributed across four digital connectors, with 40 lines per connector.

Rather than relying on fixed-function timing circuitry, the module executes user-defined FPGA logic. Creating new FPGA VIs requires the LabVIEW FPGA Module; system planning should also include the appropriate digital cable and terminal-block pinout.

160 bidirectional digital lines under FPGA control.
User-defined hardware functionality and timing through LabVIEW FPGA.
Virtex-II FPGA with 10,240 flip-flops and 10,240 four-input lookup tables.
720 kbits of embedded FPGA block RAM and 40 dedicated 18 × 18 multipliers.

Verified specifications

Technical data

Verified product specifications.

Digital I/O channels	160 lines
FPGA device	Virtex-II XC2V1000
FPGA flip-flops	10240
Four-input lookup tables	10240
18 × 18 multipliers	40
Embedded block RAM	720 kbits
Digital logic compatibility	TTL
Minimum input pulse width	25 ns
Minimum output pulse width	12.5 ns

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI R Series

Reconfigurable I/O platform and family

PXI-7811R

Digital FPGA I/O module

Development environment

LabVIEW FPGA Module for creating custom FPGA VIs.

Use the model-specific connector pinout and verify receiving-device logic thresholds before wiring.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI R Series Multifunction RIO SpecificationsSpecifications · download.ni.com

Open →

Multifunction Reconfigurable I/O User ManualUser Manual · docs-be.ni.com

Open →

NI 78xx Models: R Series Cable and Accessory CompatibilityAccessory Guide · ni.com

Open →

Digital Logic Compatibility for R Series Multifunction RIO DevicesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

PXI Platform

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the PXI-7811R provide analog I/O?

No. NI identifies the PXI-7811 as a digital-only device with 160 DIO lines; analog I/O is provided by other R Series models.

Can its outputs directly drive 5 V CMOS inputs?

Not reliably without additional interfacing. NI states that these PXI R Series outputs do not provide a high enough output-high voltage to ensure a valid high for 5 V CMOS inputs; its guidance calls for an external pull-up resistor to 5 V.

Which digital cable and terminal blocks does NI list?

NI lists the SHC68-68-RDIO cable with SCB-68 or SCB-68A terminal blocks for PXI-7811. Use the appropriate R Series pinout label rather than assuming a generic terminal-block mapping.
