Auto Bus Grant Daisy-Chaining (No Backplane Jumpers Required)
1100 W (115 VAC Input) or 1420 W (230 VAC Input) of Available Power
1100 W of Heat Dissipation by Filtered Forced-Air Cooling
Universal AC Input: Auto-Voltage and Auto-Frequency Ranging
Over-Current Protection Via Push-Reset Circuit Breaker (No Loose Fuses to Replace)
Removable Modular Power Supply with a MTBF of 50,000 Hours
Remote Power Monitoring and Inhibit Via a Rear Panel Connector
On/Off Switch Located on the Front Panel for Easy Access and Recessed to Prevent Accidental Switching
Removable Positive Pressure Modular Cooling Unit with a MTBF of 30,000 Hours
Selectable Fan Speed for Maximum Cooling or Quiet Operation
Recessed Module Mounting Surface for Concealing Cable Back Shells, Terminal Block Carriers, and Other Accessories
Integrated Lower Cable Management Channel
Rack-Mount or Bench-Top Installation
Removable Front Door

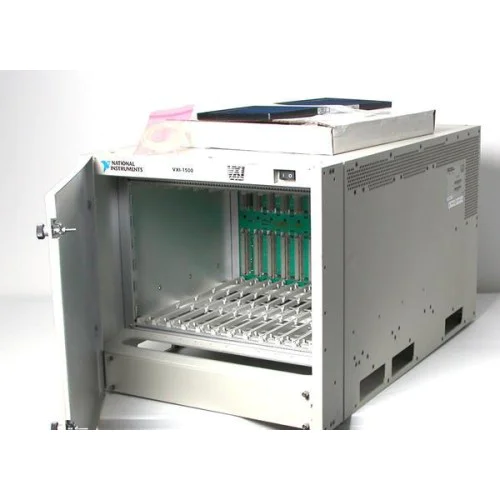

The National Instruments VXI-1500 mainframe combines a high-performance 13-slot backplane with a high-output power supply. This mainframe’s structural design has been optimized for maximum usability in a wide range of applications. The VXI-1500 fully complies with the VXIbus Specification Revision 1.4. It is also VXIplug&play-compatible.
The VXI-1500’s modular design ensures the highest level of maintainability. This results in a very low mean time to repair (MTTR). With the appropriate adapters, the 13 C-Sized VXIbus slots can accommodate A-Sized and B-Sized modules.
