National Instruments · VXI

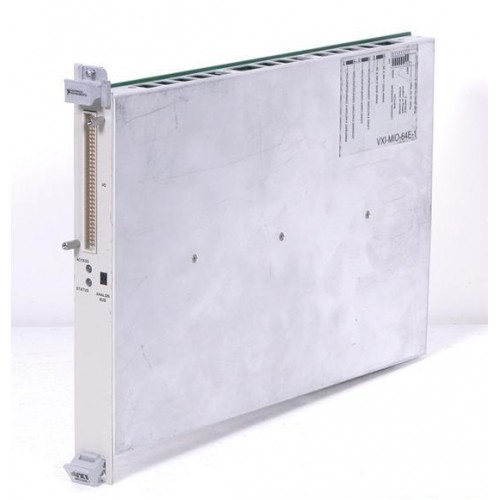

VXI-MIO-64E-1

The National Instruments VXI-MIO-64E-1 is a 12-bit multifunction I/O module for VXIbus systems. It is a legacy NI-DAQ device requiring NI-DAQ 6.9.x or earlier rather than NI-DAQmx.

ManufacturerNational Instruments

ModelVXI-MIO-64E-1

Product TypeMultifunction I/O module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: VXI-MIO-64E-1

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformVXIbus

Conversion resolution12-bit

Analog outputs2 channels with 12-bit DACs

SCXI connectionSCXI-1356 shielded cable connects to the 100-pin connector

Driver requirementNI-DAQ 6.9.x or earlier

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The VXI-MIO-64E-1 belongs to National Instruments' VXI-MIO multifunction data acquisition family. NI identifies this model as a 12-bit VXIbus module, and its archived hardware reference lists two analog output channels using double-buffered 12-bit DACs.

For SCXI signal-conditioning connections, NI documents the SCXI-1356 shielded cable with a 100-pin connection to this module and two branches routed through the specified SCXI adapters. Software planning is equally important: NI excludes this model from NI-DAQ 7.x and directs users to NI-DAQ 6.9.x or earlier.

Multifunction I/O architecture for VXIbus instrumentation systems.
Two analog output channels with double-buffered 12-bit DACs.
Analog output supports internal update clock 1 or an external update signal.
Documented SCXI-1356 shielded cable connection for interfacing with two SCXI modules through the required adapters.

Verified specifications

Technical data

Verified product specifications.

Bus interface	VXIbus
Module conversion resolution	12 bit
Analog output channels	2 channels
Analog output DAC	12-bit, double-buffered
Analog output ranges	0 to 10 V, ±10 V, ±Vref, 0 to Vref
Analog output update sources	Update clock 1 or external update
SCXI cable connection	100-pin connector for SCXI-1356
Programming driver requirement	NI-DAQ 6.9.x or earlier; not supported by NI-DAQ 7.x

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

VXIbus

Instrumentation bus

VXI-MIO-64E-1

Multifunction I/O module

SCXI interface

SCXI-1356 connects the module to two SCXI modules through SCXI-1349 and AI-48/DIO-24 adapters.

Plan around legacy NI-DAQ requirements; verify the complete controller, operating-system and application-software combination before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

LabVIEW Function and VI Reference Manual — DAQ Hardware CapabilitiesArchived Reference Manual · download.ni.com

Open →

SCXI-1356 Shielded Cable Installation GuideInstallation Guide · download.ni.com

Open →

NI-DAQ 7.3 Readme — Devices No Longer SupportedDriver Compatibility Reference · download.ni.com

Open →

SCXI-1356 wiring and adapter installationTechnical resource

Open →

Legacy NI-DAQ device support restrictionsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

VXI and VME

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Can the VXI-MIO-64E-1 be programmed with NI-DAQmx?

No. NI lists this model among devices unsupported by NI-DAQ 7.x, including NI-DAQmx and Traditional NI-DAQ 7.x. NI specifies NI-DAQ 6.9.x or earlier for programming it.

Does this module provide analog outputs?

Yes. NI's archived hardware reference lists analog output channels 0 and 1 with double-buffered 12-bit DACs.

Which documented cable connects this module to SCXI?

The SCXI-1356 shielded cable connects to the module's 100-pin connector. Its MIO-16 branch connects through an SCXI-1349 adapter, and its ACH16–ACH63 branch connects through an AI-48/DIO-24 adapter. Check the installation guide for the complete required setup.
