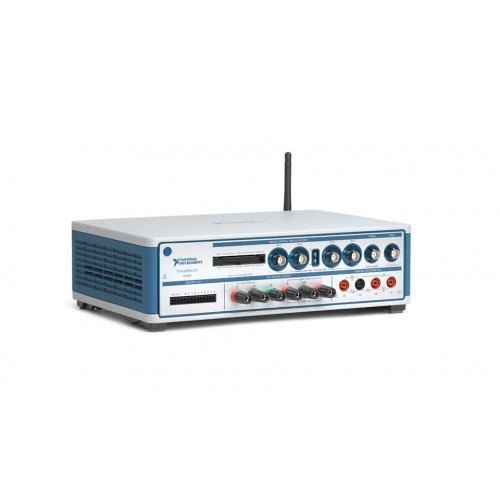

National Instruments VB-8054 VirtualBench all-in-one instrument

1 image: Click to enlarge

National Instruments · VirtualBench

VB-8054

Name: VB-8054
Brand: National Instruments

The NI VB-8054 is a VirtualBench all-in-one instrument centered on a four-channel, 500 MHz mixed-signal oscilloscope. It also integrates waveform generation, a digital multimeter, a DC supply, and digital I/O.

ManufacturerNational Instruments

ModelVB-8054

Product TypeVirtualBench all-in-one instrument

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: VB-8054

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Oscilloscope4 channels, 500 MHz

Maximum sampling2 GS/s per channel

Sine generationUp to 40 MHz

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The VB-8054 belongs to the same VirtualBench software ecosystem as the VB-8012 and VB-8034. NI lists all three models as supported devices in the VirtualBench 19.0 readme.

VirtualBench provides interactive instrument controls and application-development support. Software capabilities and operating-system support depend on the selected release; consult the corresponding readme rather than assuming support for a newer host system.

Oscilloscope acquisition supports sample, peak-detect, and averaging modes.
Function generation supports sine, square, ramp/triangle, DC, and arbitrary waveforms.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	4, single-ended, non-isolated
Oscilloscope bandwidth (-3 dB)	500; with 50 Ω input or accessory probe MHz
Maximum sample rate	2 per channel GS/s
Oscilloscope resolution	8 bits
Maximum sine frequency	40 MHz
DMM resolution	5½ digits
DC supply outputs	0 to +6 V/3 A; 0 to +25 V/1 A; 0 to -25 V/1 A
AC input	100–240 V AC, 50/60 Hz

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

VirtualBench

Instrument and software family

VB-8054

All-in-one instrument

Software release

VirtualBench 19.0 explicitly supports the VB-8054.

Check host software requirements and probe limits before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

VB-8054 SpecificationsSpecifications · download.ni.com

Open →

VirtualBench 19.0 ReadmeSoftware Readme · ni.com

Open →

VirtualBench probe compatibilityTechnical resource

Open →

VirtualBench Windows and iPad feature comparisonTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does VirtualBench 19.0 support the VB-8054?

Yes. NI lists the VB-8054 among supported devices. That release documents Windows 10 and LabVIEW 2016 through 2019 support.

Can every VirtualBench oscilloscope probe be used with the VB-8054?

No. NI lists CP400X, CP500X, and SP500X as fully compatible, but identifies SP200B as incompatible with the VB-8054 oscilloscope bandwidth. Consult NI's probe compatibility table before selecting a probe.

Are Windows and iPad instrument features identical?

No. NI's feature comparison documents differences, including Windows-only arbitrary-waveform file loading and protocol analysis in the compared application versions.
