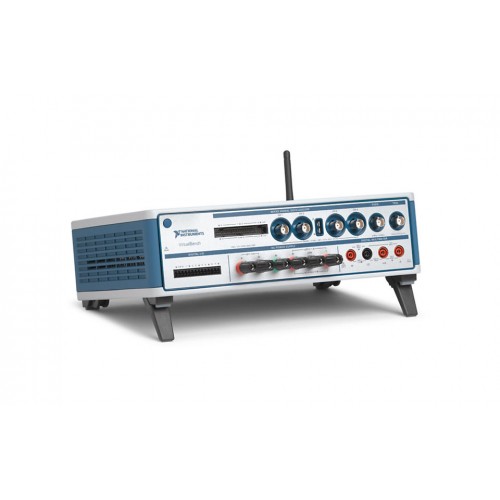

National Instruments VB-8034 All-in-one mixed-signal test instrument

1 image: Click to enlarge

National Instruments · VirtualBench

VB-8034

Name: VB-8034
Brand: National Instruments

The NI VB-8034 VirtualBench combines a four-channel, 350 MHz mixed-signal oscilloscope with protocol analysis, an arbitrary waveform generator, digital multimeter, programmable DC power supply and digital I/O. It supports interactive measurement and LabVIEW-based automated test.

ManufacturerNational Instruments

ModelVB-8034

Product TypeAll-in-one mixed-signal test instrument

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: VB-8034

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Oscilloscope4 analog channels, 350 MHz bandwidth

Maximum sample rate1.5 GS/s per analog channel

Waveform generation20 MHz maximum sine frequency

DC supply output power68 W total

Digital multimeter5½-digit resolution

ConnectivityUSB, Ethernet and Wi-Fi

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The VB-8034 brings multiple bench instruments into one PC- or iPad-connected device for circuit design, debugging and validation. The VirtualBench software provides a shared measurement interface, while LabVIEW integration enables programmatic control and automated test sequences.

Within the VirtualBench family, the VB-8034 provides four analog oscilloscope channels and 350 MHz bandwidth. NI also documents the VB-8012 and VB-8054 as members of the same instrument family.

Mixed-signal oscilloscope with four analog inputs and protocol analysis.
Integrated arbitrary waveform generator for signal stimulus.
Digital multimeter measures AC/DC voltage, AC/DC current and resistance, with diode and continuity functions.
Programmable DC power supply and digital I/O integrated into the same device.
LabVIEW integration supports automated measurement sequences.

Verified specifications

Technical data

Verified product specifications.

Oscilloscope analog channels	4, single-ended and non-isolated
Oscilloscope bandwidth	350 at -3 dB; 50 Ω mode or 1 MΩ mode with the accessory oscilloscope probe MHz
Maximum analog sample rate	1.5 GS/s/channel
Oscilloscope resolution	8 bits
Maximum analog record length	1 MS/channel
Logic analyzer channels	34
Function generator maximum sine frequency	20 MHz
Digital multimeter resolution	5½ digits
DC power supply outputs	0 to +6 V at up to 3 A; 0 to +25 V at up to 1 A; 0 to -25 V at up to 1 A
Total output power	68 W
Digital I/O channels	8, software-selectable input or output
AC input voltage	100–240 VAC
AC input frequency	50/60 Hz

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

VirtualBench

All-in-one instrument family and software environment

VB-8034

Four-channel, 350 MHz instrument

Interactive operation

PC or iPad integration; application features differ by host.

Check the selected VirtualBench software release for host OS and LabVIEW version support; Windows and iPad features differ.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI VB-8034 Device SpecificationsSpecifications · download.ni.com

Open →

NI VB-8034 Product and Support PageProduct Support · ni.com

Open →

VirtualBench All-in-One Instrument Product FlyerProduct Flyer · ni.com

Open →

VirtualBench Windows and iPad Feature ComparisonTechnical resource

Open →

VirtualBench 19.0 ReadmeTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the VB-8034 only an oscilloscope?

No. Alongside its four-channel, 350 MHz mixed-signal oscilloscope, it integrates an arbitrary waveform generator, digital multimeter, programmable DC power supply and digital I/O.

Can the VB-8034 be controlled from LabVIEW?

Yes. NI documents LabVIEW integration for programmatic control and automated test sequences. Check release-specific software requirements before configuring the host.

Is the VB-8034 restricted to 110 VAC input?

No. NI specifies a hardware input range of 100–240 VAC at 50/60 Hz. The catalog's Taiwan 110VAC description does not establish the regional power cord supplied with this unit.
