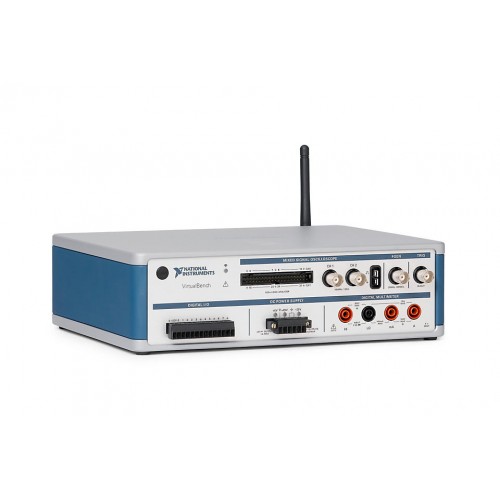

National Instruments VB-8012 All-in-one mixed-signal test instrument
1 image: Click to enlarge
National Instruments · VirtualBench

VB-8012

The NI VB-8012 VirtualBench combines a two-channel, 100 MHz mixed-signal oscilloscope, arbitrary waveform generator, digital multimeter, programmable DC power supply and digital I/O in one instrument.

ManufacturerNational Instruments
ModelVB-8012
Product TypeAll-in-one mixed-signal test instrument
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: VB-8012

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Oscilloscope2 analog channels; 100 MHz bandwidth
Maximum analog sample rate1 GS/s single-channel; 500 MS/s/channel dual-channel
Waveform generator20 MHz maximum sine frequency
Digital multimeter5½-digit resolution
DC supplyThree outputs; 31 W total
ConnectivityUSB and Wi-Fi
