National Instruments · USRP

USRP-2932

The NI USRP-2932 is a 400 MHz to 4.4 GHz software defined radio with one transmit channel, one receive channel, and an integrated GPS-disciplined oscillator. It connects to a host computer through Gigabit Ethernet.

ManufacturerNational Instruments

ModelUSRP-2932

Product TypeSoftware defined radio

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USRP-2932

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

RF tuning range400 MHz to 4.4 GHz

RF channels1 TX / 1 RX

Host interfaceGigabit Ethernet

Timing referenceIntegrated GPSDO

Instantaneous bandwidth20 MHz at 16-bit sample width; 40 MHz at 8-bit sample width

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USRP-2932 belongs to NI's USRP software defined radio family. NI maps this model to an Ettus Research N210 platform with an SBX RF daughterboard and GPSDO.

Its integrated GPS-disciplined clock supports wireless-system prototyping and distributed-radio timing applications. GPS disciplining requires a suitable antenna with a clear view of the sky; reference-clock selection must also be configured appropriately in the driver.

Independent transmit and receive operation with full-duplex support through the SBX RF daughterboard.
Integrated GPSDO provides an oven-controlled crystal oscillator reference.
Supported by the NI-USRP instrument driver for host-based radio development.
Selectable sample widths provide different streaming bandwidth and I/Q sample-rate limits.

Verified specifications

Technical data

Verified product specifications.

Transmit and receive frequency range	400 MHz to 4.4 GHz
RF channel count	1 transmit / 1 receive
Host interface	Gigabit Ethernet
Maximum instantaneous real-time bandwidth, TX and RX	20 at 16-bit sample width; 40 at 8-bit sample width; host and network dependent MHz
Maximum I/Q sample rate, TX and RX	25 at 16-bit sample width; 50 at 8-bit sample width; host and network dependent MS/s
Transmit gain range	0 to 31 dB
Receive gain range	0 to 31.5 dB
External DC power requirement	6 V, 3 A
Operating ambient temperature	0 to 55 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USRP / Gigabit Ethernet

Radio platform and host interface

USRP-2932

N210-based radio with SBX and GPSDO

Software

NI-USRP driver; verify application software and operating-system requirements against the selected driver release.

Check driver-version requirements and reference-clock configuration before integrating the radio.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USRP-2932 SpecificationsSpecifications · download.ni.com

Open →

NI USRP Software Defined Radios Product BrochureProduct Brochure · ni.com

Open →

NI-USRP 19.0 ReadmeDriver Release Documentation · ni.com

Open →

NI-USRP: Using GPSDO OCXO as 10 MHz ReferenceTechnical resource

Open →

NI USRP Software Defined Radio Device Duplex ModeTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

Wireless Design and Test

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the USRP-2932 include a GPS-disciplined oscillator?

Yes. NI identifies the USRP-2932 as an N210-based radio with an SBX daughterboard and integrated GPSDO. GPS disciplining requires a suitable GPS antenna with a clear sky view.

Is the instantaneous bandwidth limited to 20 MHz?

The specifications list 20 MHz at 16-bit sample width and 40 MHz at 8-bit sample width for both transmit and receive. Achievable throughput depends on the network and host computer.

Can the USRP-2932 transmit and receive simultaneously?

Yes. NI maps the USRP-2932 to the SBX daughterboard, which supports full-duplex operation.

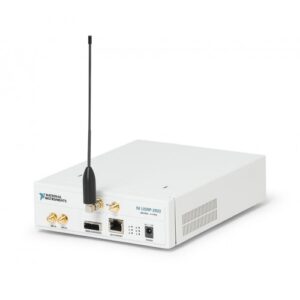

How does the USRP-2932 differ from the USRP-2922?

Both models use the N210 platform with an SBX daughterboard and cover 400 MHz to 4.4 GHz with one transmit and one receive channel. The USRP-2932 adds an integrated GPSDO.
