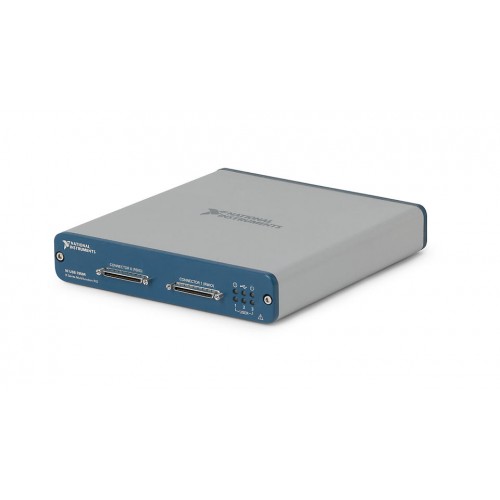

National Instruments USB-7855 Multifunction reconfigurable I/O device

1 image: Click to enlarge

National Instruments · USB R Series

USB-7855

Name: USB-7855
Brand: National Instruments

The NI USB-7855 is a USB R Series multifunction reconfigurable I/O device built around a Kintex-7 70T FPGA. It combines analog input, analog output and digital I/O.

ManufacturerNational Instruments

ModelUSB-7855

Part Number782915-02

Product TypeMultifunction reconfigurable I/O device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-7855

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

FPGAKintex-7 70T

Analog input8 channels, 16-bit

AI samplingUp to 1 MS/s per channel

Analog output8 channels, 16-bit

Digital I/O48 lines across two connectors

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-7855 belongs to NI's FPGA-based R Series platform. R Series hardware can be programmed with the LabVIEW FPGA Module to define custom measurement hardware circuitry.

NI provides separate documentation for the OEM version. Confirm the physical variant before selecting mechanical drawings or integration instructions.

Software-selectable analog input ranges.
Supports differential, referenced single-ended and non-referenced single-ended analog input connections.
Digital ports can be accessed using an FPGA I/O Node configured for reading and writing.

Verified specifications

Technical data

Verified product specifications.

USB compatibility	USB 2.0 Hi-Speed or Full-Speed
FPGA	Kintex-7 70T
Analog input channels	8 channels
Analog input resolution	16 bits
Maximum AI sampling rate per channel	1 MS/s
Analog input ranges	±1, ±2, ±5, ±10 V
Analog output channels	8 channels
Analog output resolution	16 bits
Analog output range	±10 V
Digital I/O lines	48 lines
Maximum digital frequency	Connector 0: 80 MHz; connector 1: 10 MHz
Digital logic families	1.2, 1.5, 1.8, 2.5, 3.3 V

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB R Series

FPGA-based multifunction I/O platform

USB-7855

Multifunction reconfigurable I/O device

Programming ecosystem

LabVIEW FPGA Module for R Series FPGA programming

Confirm OEM versus enclosed hardware and the connector function before selecting accessories.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-7855R SpecificationsSpecifications · ni.com

Open →

USB-7855 Dimensional DrawingsMechanical Drawings And CAD · ni.com

Open →

NI USB-7855R OEM User Manual — OEM variant onlyUser Manual · download.ni.com

Open →

USB-7855 Digital Port AssignmentsTechnical resource

Open →

NI 78xx R Series Cable and Accessory CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How are the USB-7855 digital lines assigned?

Connector 0 contains four eight-line ports, while connector 1 contains two eight-line ports, giving 48 digital lines in total.

Which cables does NI list for the USB-7855?

NI lists SHC68-68-RMIO for multifunction I/O and SHC68-C68-RDIO2 for digital I/O. Select the cable according to the connector function.

Is 782915-02 associated with the USB-7855?

Yes. NI's USB-7855 drawing page lists 782915-02 alongside 782915-01. Confirm the actual item's label and mechanical configuration before choosing a drawing.
