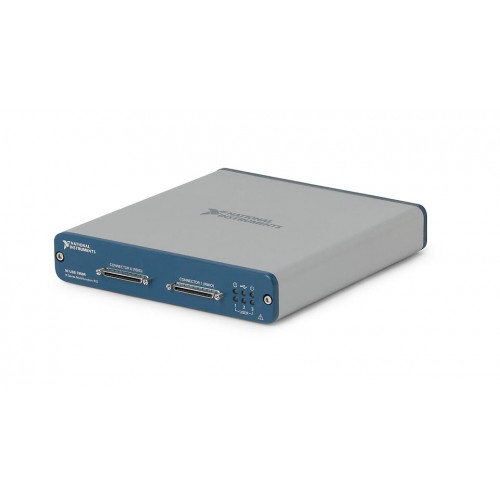

NI (National Instruments) USB-7845 Kintex-7 70T FPGA, 500 kS/s Multifunction Reconfigurable I/O Device

1 image: Click to enlarge

NI (National Instruments) · USB 2.0

USB-7845

Name: USB-7845
Brand: NI (National Instruments)

The NI USB-7845 is a USB 2.0 multifunction reconfigurable I/O device with a Kintex-7 70T FPGA and a maximum sample rate of 500 kS/s. It provides eight analog inputs, eight analog outputs and 48 bidirectional digital channels.

ManufacturerNI (National Instruments)

ModelUSB-7845

Part Number783200-01 · 783200-02

Product TypeKintex-7 70T FPGA, 500 kS/s Multifunction Reconfigurable I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-7845

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Sample Rate500 kS/s

Bus ConnectionUSB 2.0

Maximum Clock Rate80 MHz

Bidirectional Digital Channels48

Digital I/O Logic Levels1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V

FPGAKintex-7 70T

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-7845 combines analog and digital I/O with a user-programmable Kintex-7 70T FPGA for onboard processing and direct control of I/O signals. The catalog identifies NI part numbers 783200-01 and 783200-02 for this model.

Its eight analog inputs support simultaneous sampling, with dedicated A/D conversion per channel for independent timing and triggering. Eight analog outputs and 48 bidirectional digital channels provide additional signal generation and digital interfacing capabilities.

User-programmable Kintex-7 70T FPGA for onboard processing and I/O control.
Eight 16-bit analog inputs with selectable ±1 V, ±2 V, ±5 V and ±10 V ranges.
Simultaneous analog input sampling at a maximum sample rate of 500 kS/s.
Eight 16-bit analog outputs with a ±10 V output range and maximum analog update rate of 1 MS/s.
48 bidirectional digital channels supporting 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V logic levels.
USB 2.0 host interface and VHDCI front connection.

Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate	500 kS/s
Bus Connection	USB 2.0
Maximum Clock Rate	80 MHz
Number of Bidirectional Digital Channels	48
Digital I/O Logic Levels	1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
FPGA	Kintex-7 70T
Analog Input Voltage Range	-1 V to 1 V -2 V to 2 V -5 V to 5 V -10 V to 10 V
Electrical Signal Measured	Voltage
Reconfigurable	Yes
Number of Analog Input Channels	8
Maximum Digital Update Rate	12.5 ns
Maximum Analog Update Rate	1 MS/s
Number of Analog Output Channels	8
Operating Temperature Range	-40 °C to 70 °C
Front Connection Type	VHDCI
Signaling Type	Single-Ended
Maximum Number of Single-Ended Analog Input Channels	8
Maximum Number of Differential Analog Input Channels	8
Analog Input Resolution	16 bits
Number of Voltage Output Channels	8
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
Simultaneous Sampling	Yes
Analog Input Absolute Accuracy	2.28 mV
NI part numbers	783200-01, 783200-02

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

USB 2.0

Bus Connection

USB-7845

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

USB-7845 Getting StartedTechnical resource

Open →

USB-7845 Dimensional DrawingsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of device is the NI USB-7845?

It is a USB 2.0 multifunction reconfigurable I/O device with a user-programmable Kintex-7 70T FPGA and a maximum sample rate of 500 kS/s.

How many analog input and output channels does it have?

The USB-7845 provides eight 16-bit analog inputs and eight 16-bit analog outputs. Its analog inputs support simultaneous sampling.

What voltage ranges does the analog I/O support?

Analog input ranges are ±1 V, ±2 V, ±5 V and ±10 V. The analog output range is ±10 V.

What digital I/O capabilities are provided?

It has 48 bidirectional digital channels supporting 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V logic levels.

Which NI part numbers are associated with the USB-7845?

The existing verified catalog data associates part numbers 783200-01 and 783200-02 with the USB-7845. Confirm the required configuration before selecting a part number.
