NI (National Instruments) USB-7856 Kintex-7 160T FPGA, 1 MS/s Multifunction Reconfigurable I/O Device

1 image: Click to enlarge

NI (National Instruments) · USB 2.0

USB-7856

Name: USB-7856
Brand: NI (National Instruments)

The NI USB-7856 is a USB 2.0 multifunction reconfigurable I/O device with a Kintex-7 160T FPGA and a maximum sampling rate of 1 MS/s. It provides eight analog inputs, eight analog outputs and 48 bidirectional digital channels.

ManufacturerNI (National Instruments)

ModelUSB-7856

Part Number782916-01 · 782916-02

Product TypeKintex-7 160T FPGA, 1 MS/s Multifunction Reconfigurable I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-7856

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Maximum Sample Rate1 MS/s

Bus ConnectionUSB 2.0

Maximum Clock Rate80 MHz

Bidirectional Digital Channels48

Digital I/O Logic Levels1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V

FPGAKintex-7 160T

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

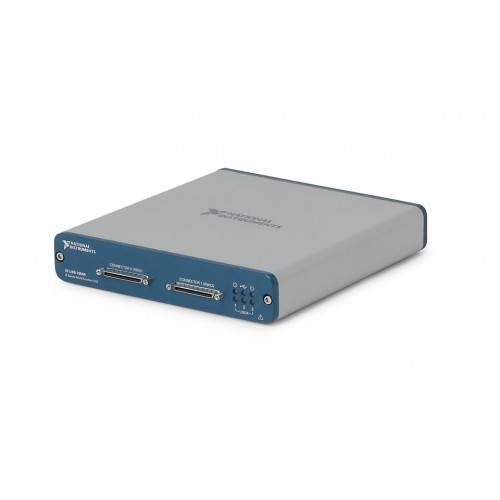

The USB-7856 combines voltage measurement and generation with FPGA-based digital I/O in a USB-connected device. Its user-programmable FPGA supports onboard processing and direct control of I/O signals.

The FPGA can be customized with the LabVIEW FPGA Module for precise timing and control. Dedicated A/D conversion per channel supports independent timing and triggering, including multirate sampling and individual channel triggering.

Kintex-7 160T FPGA for user-programmable onboard processing and I/O control.
Eight analog inputs and eight analog outputs with 16-bit resolution.
Selectable analog input ranges of ±1 V, ±2 V, ±5 V and ±10 V; analog output range of ±10 V.
48 bidirectional digital channels with 1.2 V, 1.5 V, 1.8 V, 2.5 V and 3.3 V logic levels.
Maximum analog sampling and update rates of 1 MS/s.
Simultaneous sampling and VHDCI front connections.

Verified specifications

Technical data

Verified product specifications.

Maximum Sample Rate	1 MS/s
Bus Connection	USB 2.0
Maximum Clock Rate	80 MHz
Number of Bidirectional Digital Channels	48
Digital I/O Logic Levels	1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V
FPGA	Kintex-7 160T
Analog Input Voltage Range	-1 V to 1 V -2 V to 2 V -5 V to 5 V -10 V to 10 V
Electrical Signal Measured	Voltage
Reconfigurable	Yes
Number of Analog Input Channels	8
Maximum Digital Update Rate	12.5 ns
Maximum Analog Update Rate	1 MS/s
Number of Analog Output Channels	8
Operating Temperature Range	-40 °C to 70 °C
Front Connection Type	VHDCI
Signaling Type	Single-Ended
Maximum Number of Single-Ended Analog Input Channels	8
Maximum Number of Differential Analog Input Channels	8
Analog Input Resolution	16 bits
Number of Voltage Output Channels	8
Analog Output Voltage Range	-10 V to 10 V
Analog Output Resolution	16 bits
Simultaneous Sampling	Yes
Analog Input Absolute Accuracy	2.28 mV
NI part numbers	782916-01, 782916-02

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

USB 2.0

Bus Connection

USB-7856

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What type of device is the NI USB-7856?

It is a USB 2.0 multifunction reconfigurable I/O device with a Kintex-7 160T FPGA and a maximum sampling rate of 1 MS/s.

How many analog and digital channels does it provide?

The USB-7856 provides eight analog inputs, eight analog outputs and 48 bidirectional digital channels. Both analog input and output resolution are 16 bits.

Which NI part numbers are listed for the USB-7856?

The existing verified catalog data lists 782916-01 and 782916-02. Confirm the required configuration by part number before selecting a unit.

How is the FPGA customized?

The USB-7856 FPGA can be customized using the LabVIEW FPGA Module for onboard processing, timing and direct I/O control.
