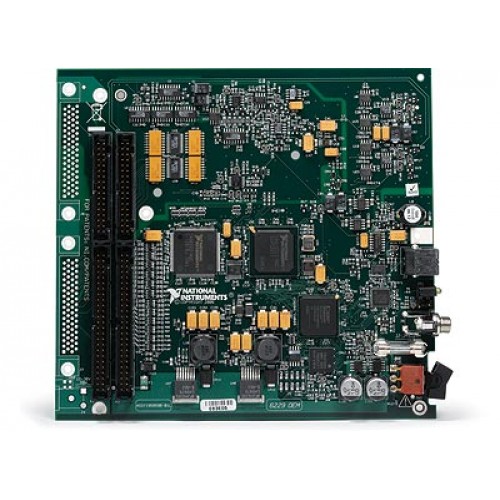

National Instruments USB-6225 OEM Board-only multifunction data acquisition device
1 image: Click to enlarge
National Instruments · USB

USB-6225 OEM

The NI USB-6225 OEM is a board-only M Series USB multifunction DAQ device without an enclosure. It combines analog input and output, digital I/O and counter/timer functions.

ManufacturerNational Instruments
ModelUSB-6225 OEM
Part Number197294-01
Product TypeBoard-only multifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6225 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs80 single-ended or 40 differential; 16-bit
Maximum AI sampling250 kS/s aggregate
Analog outputs2 channels; 16-bit
Digital I/O24 lines
Counters/timersTwo 32-bit counters/timers
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Part 197294-01 identifies the OEM board-only version of the USB-6225 rather than an enclosed screw-terminal or mass-termination model.

For integration, NI provides a dedicated OEM user guide covering board dimensions, pinouts, connectors, switch, LEDs and chassis ground. Use this guide for mechanical and wiring design rather than enclosed-model connection diagrams.

  • Selectable analog input ranges of ±0.2 V, ±1 V, ±5 V and ±10 V.
  • Analog output updates up to 833 kS/s with one channel or 740 kS/s per channel with two channels.
  • Digital triggering and counter/timer functions complement analog and digital I/O.
Verified specifications

Technical data

Verified product specifications.

Analog input configuration80 single-ended or 40 differential
ADC resolution16 bit
Maximum aggregate AI sample rate250 kS/s
Analog output channels2
DAC resolution16 bit
Maximum AO update rate, one channel833 kS/s
Maximum AO update rate, two channels740 kS/s per channel
OEM board weight162 g
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series / USB

DAQ family and host interface

USB-6225 OEM

Board-only multifunction DAQ device

Integration reference

USB-622x/625x/628x OEM User Guide

Use OEM-specific pinouts and mechanical drawings; do not assume enclosed USB-6225 accessories fit this board.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-6225 Product Page and Part-Number TableProduct Page · ni.com
Open →
PCI/PXI/USB-6225 SpecificationsSpecifications · ni.com
Open →
USB-622x/625x/628x OEM User GuideOEM User Guide · ni.com
Open →
OEM Integration: Dimensions, Pinouts and GroundingTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
USB-6225View product →
Related model
USB-6255 OEMView product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which part number identifies the USB-6225 OEM?

NI lists 197294-01 as the USB-6225 OEM board-only kit without an enclosure.

Where are OEM wiring and mechanical details documented?

The USB-622x/625x/628x OEM User Guide covers dimensions, pinouts, connectors and grounding for this model.

Ask SOHO AssistantProduct & compatibility help
