National Instruments · USB

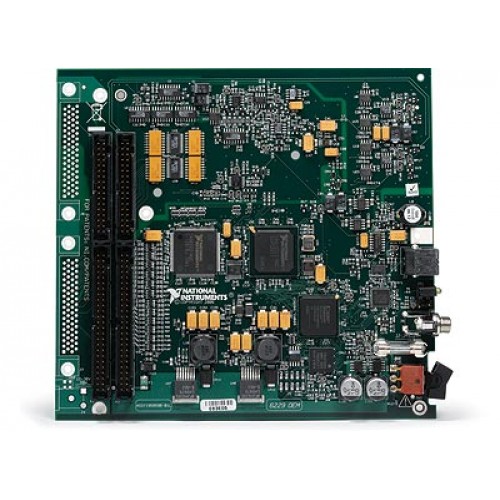

USB-6255 OEM

Name: USB-6255 OEM
Brand: National Instruments

The NI USB-6255 OEM is a board-only M Series USB data acquisition device for OEM integration. It combines 80 analog inputs, two analog outputs and 24 digital I/O lines.

ManufacturerNational Instruments

ModelUSB-6255 OEM

Part Number197201-01

Product TypeBoard-only multifunction data acquisition device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6255 OEM

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs80 single-ended or 40 differential; 16-bit

Maximum AI rate1.25 MS/s single-channel; 750 kS/s multichannel aggregate

Analog outputs2 channels

Digital I/O24 lines

Form factorOEM board-only, without enclosure

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-6255 OEM provides multifunction acquisition in a board-only format rather than an enclosed USB instrument. NI identifies part number 197201-01 as the OEM board-only version.

The analog inputs support single-ended or differential measurements. The 1.25 MS/s maximum applies to single-channel acquisition; multichannel acquisition is limited to 750 kS/s aggregate, not per channel.

For mechanical and electrical integration, NI provides an OEM-specific guide covering dimensions, pinouts, connectors, switches, LEDs and chassis ground. Use this guide rather than assuming the enclosed USB-6255 connection scheme applies.

16-bit analog acquisition with up to 80 single-ended or 40 differential inputs.
Two analog outputs and 24 digital I/O lines alongside the analog inputs.
Two 32-bit counters/timers and analog and digital triggering.
OEM-specific pinout documentation and part-number-specific mechanical drawings.

Verified specifications

Technical data

Verified product specifications.

Host interface	USB 2.0
Single-ended analog inputs	80 channels
Differential analog inputs	40 channels
Analog input resolution	16 bits
Maximum single-channel AI sample rate	1.25 MS/s
Maximum multichannel aggregate AI sample rate	750 kS/s
Simultaneous analog input sampling	No
Analog outputs	2 channels
Analog output resolution	16 bits
Maximum analog output update rate	2.86 MS/s
Digital I/O	24 lines
Counters/timers	2 × 32-bit

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB M Series

Multifunction DAQ family and host interface

USB-6255 OEM

Board-only integration variant

Integration reference

USB-622x/625x/628x OEM User Guide

Use the OEM pinout and mechanical documentation; enclosed USB-6255 accessory tables do not establish OEM wiring compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB-6255 Product Page and Variant SpecificationsProduct Page · ni.com

Open →

USB-622x/625x/628x OEM User GuideOEM User Guide · ni.com

Open →

USB-6255 Dimensional Drawings and CAD ModelsMechanical Drawings · ni.com

Open →

High-Speed M Series Multifunction DAQ for USBFamily Datasheet · ni.com

Open →

OEM Pinouts and Integration GuideTechnical resource

Open →

197201-01 Drawing and CAD DownloadsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which part number identifies the USB-6255 OEM?

NI lists 197201-01 as the USB-6255 OEM board-only kit, distinct from enclosed screw-terminal and mass-termination versions.

Does every input sample at 1.25 MS/s?

No. The maximum is 1.25 MS/s for single-channel acquisition and 750 kS/s aggregate for multichannel acquisition. The inputs are not simultaneously sampled.

Where are the OEM pinouts and mounting information?

The USB-622x/625x/628x OEM User Guide covers pinouts and dimensions. NI also provides separate drawings and CAD models for part number 197201-01.
