National Instruments · USB

USB-6225

Name: USB-6225
Brand: National Instruments

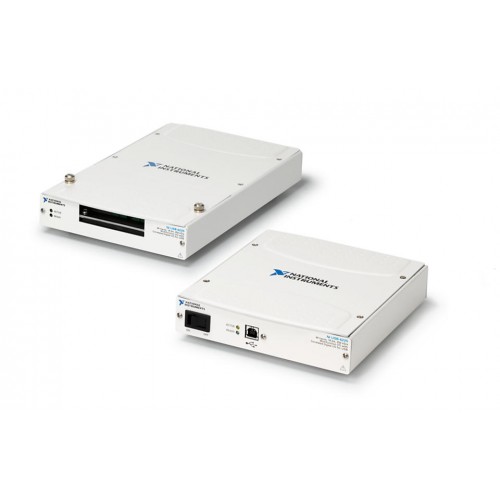

The NI USB-6225 is an M Series multifunction USB data acquisition device combining high-channel-count analog input with analog output, digital I/O, and counter/timer functions.

ManufacturerNational Instruments

ModelUSB-6225

Part Number779973-04

Product TypeMultifunction I/O data acquisition device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6225

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs80 single-ended or 40 differential

Input resolution16-bit

Maximum input sampling250 kS/s aggregate

Analog outputs2

Digital I/OUp to 24 lines

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-6225 brings analog acquisition and signal generation together with digital I/O and two 32-bit counters/timers. NI identifies laboratory automation, research, design verification, and manufacturing test as product applications.

The 250 kS/s analog input limit is shared across the active channels in multichannel acquisition. Select the input range and acquisition timing for the signals being measured.

Selectable analog input ranges of ±0.2 V, ±1 V, ±5 V, and ±10 V.
Two analog outputs with a maximum advertised update rate of 833 kS/s.
Digital triggering and two 32-bit counters/timers.

Verified specifications

Technical data

Verified product specifications.

Single-ended analog input channels	80 channels
Differential analog input channels	40 channels
Analog input resolution	16 bits
Maximum analog input sample rate	250 single-channel or multichannel aggregate kS/s
Analog input ranges	±0.2, ±1, ±5, ±10 V
Analog input FIFO	4095 samples
Analog output channels	2 channels
Host interface	USB 2.0
Signal connection for part number 779973-04	Screw terminal
