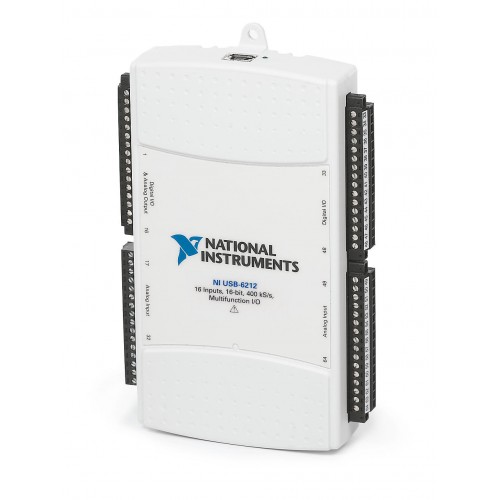

USB-6212, front view
USB-6212, front view additional viewUSB-6212, front view additional viewUSB-6212, front view additional viewUSB-6212, front view additional viewUSB-6212, front view additional view
17 images: additional views below.Click to enlarge
National Instruments · USB

USB-6212

The NI USB-6212 is a bus-powered multifunction USB DAQ device combining analog input, analog output, digital I/O, and counter/timer functions. Connector configuration and digital channel count depend on the variant.

ManufacturerNational Instruments
ModelUSB-6212
Product TypeMultifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6212

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs16 single-ended or 8 differential
Input performance16-bit; 400 kS/s maximum aggregate
Analog outputs2 channels; 250 kS/s per channel
Counters2 × 32-bit
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Part of NI's bus-powered M Series, the USB-6212 supports computer-based measurement and control through NI-DAQmx. Its USB signal streaming supports bidirectional data transfer.

  • Selectable analog input ranges: ±0.2, ±1, ±5, and ±10 V.
  • 16-bit analog outputs with a ±10 V range.
  • Counter functions include edge counting and quadrature position measurement.
Verified specifications

Technical data

Verified product specifications.

Analog input channels16 single-ended or 8 differential
Analog input resolution16 bit
Maximum analog input sample rate400; single-channel or multichannel aggregate kS/s
Analog output channels2
Maximum analog output update rate250 per channel kS/s
Digital I/O count by variant32 screw terminal; 24 BNC or mass termination channels
Analog input FIFO4095 samples
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB M Series

DAQ family and host interface

USB-6212

Multifunction DAQ device

Compatibility

Uses NI-DAQmx; verify the driver release against the intended operating system.

Confirm the unit's part number and connector variant before selecting wiring accessories.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-6212 Product and Variant InformationProduct Page · ni.com
Open →
USB-6212 SpecificationsSpecifications PDF · download.ni.com
Open →
USB-6212 Dimensional DrawingsDrawings And CAD Models · ni.com
Open →
Variant-specific USB-6212 mechanical drawings and CAD filesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does this record identify a BNC or screw-terminal device?

The record is inconsistent. Its tag includes 781003-01, which NI identifies as BNC, while its legacy description specifies screw terminals. Confirm the physical unit before choosing accessories.
