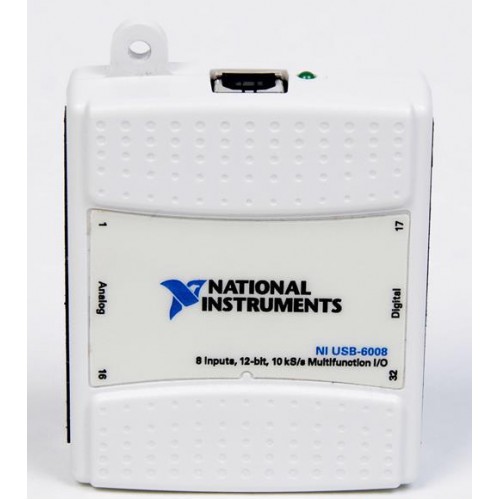

National Instruments USB-6008 Multifunction data acquisition device

1 image: Click to enlarge

National Instruments · USB DAQ

USB-6008

Name: USB-6008
Brand: National Instruments

The National Instruments USB-6008 is a bus-powered multifunction USB DAQ device combining analog input, analog output, digital I/O, and an event counter. Screw-terminal connectivity supports simple data logging, portable measurements, and academic laboratory experiments.

ManufacturerNational Instruments

ModelUSB-6008

Product TypeMultifunction data acquisition device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6008

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog inputs8 single-ended or 4 differential

Input resolution12-bit differential; 11-bit single-ended

Maximum sampling rate10 kS/s aggregate, system dependent

Analog outputs2 channels, 0 to +5 V, software-timed

Digital I/O12 individually configurable lines

CounterOne 32-bit falling-edge event counter

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-6008 connects measurement signals directly to a computer through USB, with power supplied by the USB bus. Its lightweight enclosure and screw-terminal signal connections suit portable measurement setups and introductory laboratory work.

Analog input configuration determines both channel count and resolution: differential measurements provide four channels at 12 bits, while single-ended measurements provide eight channels at 11 bits. The maximum 10 kS/s input rate is aggregate, not per channel.

USB bus power supports portable operation without a separate device power supply.
Screw-terminal connectivity provides direct access to sensors and signals.
Two 12-bit analog outputs support software-timed updates up to 150 Hz.
Digital lines can be individually configured as inputs or outputs.
NI-DAQmx provides device configuration and measurement support.

Verified specifications

Technical data

Verified product specifications.

Analog input channels	4 differential or 8 single-ended, software-selectable
Analog input resolution	12 differential; 11 single-ended bits
Maximum aggregate analog input sample rate	10, system dependent kS/s
Differential input ranges	±20, ±10, ±5, ±4, ±2.5, ±2, ±1.25, ±1; each input must remain within ±10 V of GND V
Single-ended input range	±10 V
Analog output channels	2
Analog output resolution	12 bits
Maximum analog output update rate	150, software-timed Hz
Analog output range	0 to +5 V
Digital I/O lines	12; individually programmable direction; open-collector outputs
Event counter	One 32-bit counter; falling-edge counting; count up
Maximum counter input frequency	5 MHz
Bus interface	USB 2.0 full-speed, 12 Mb/s
Signal connectors	Two 16-position screw-terminal plugs

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB DAQ

Computer-connected, bus-powered measurement platform

USB-6008

Multifunction analog and digital I/O device

Measurement software

NI-DAQmx driver and configuration utility

The ±20 V differential range does not permit either input terminal to exceed ±10 V relative to GND.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-6008 Product PageProduct Page · ni.com

Open →

USB-6008 SpecificationsSpecifications · ni.com

Open →

NI USB-6008/6009 User GuideUser Guide PDF · download.ni.com

Open →

USB-6008 Specifications PDFTechnical resource

Open →

Accuracy Specifications for NI USB-6008 and USB-6009Technical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the USB-6008 a 14-bit DAQ device?

No. The USB-6008 provides 12-bit differential and 11-bit single-ended analog input resolution. The USB-6009 is the 14-bit model.

Does 10 kS/s apply to every analog input channel?

No. The specified maximum is 10 kS/s aggregate across the acquired analog input channels and is system dependent.

Are the analog outputs hardware-timed?

No. The two analog outputs are software-timed, with a maximum update rate of 150 Hz and a 0 to +5 V output range.

Which accessory kit is documented for the USB-6008?

NI lists the USB-6008/6009 Accessory Kit, part number 779371-01, containing four additional screw-terminal connectors, connector labels, and a screwdriver.
