USB-6009
USB-6009 additional viewUSB-6009 additional viewUSB-6009 additional viewUSB-6009 additional view
5 images: additional views below.Click to enlarge
NI (National Instruments) · USB 2.0

USB-6009

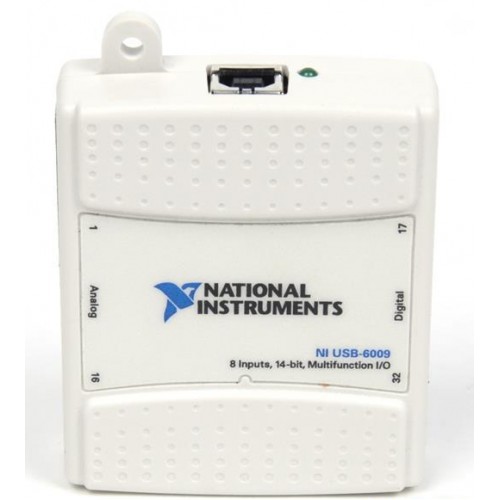

The NI USB-6009 is a USB multifunction data acquisition device combining analog inputs, analog outputs, digital I/O, and a counter. Screw-terminal connections provide access to measurement and control signals.

ManufacturerNI (National Instruments)
ModelUSB-6009
Part Number191039-01 · 779026-01
Product Type8 AI (14-Bit, 48 kS/s), 2 AO (150 Hz), 13 DIO USB Multifunction I/O Device
