National Instruments SHC68-C68-D4 Shielded single-ended digital cable

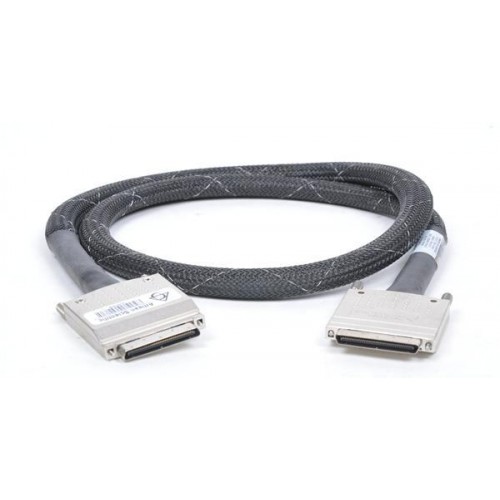

1 image: Click to enlarge

National Instruments · NI digital instruments

SHC68-C68-D4

Name: SHC68-C68-D4
Brand: National Instruments

The NI SHC68-C68-D4 is a shielded, 50 Ω digital cable with 68-pin VHDCI male connectors at both ends. It connects supported NI digital instruments to compatible accessories.

ManufacturerNational Instruments

ModelSHC68-C68-D4

Part Number781013-01 · 196275-01

Product TypeShielded single-ended digital cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SHC68-C68-D4

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Connectors68-pin VHDCI male at both ends

Characteristic impedance50 Ω ±10% for documented 0.55 m, 1 m and 2 m variants

ConstructionIndividually shielded mini-coaxial conductors with overall cable shielding

Variant choices0.55 m, 1 m, 1 m low-leakage, 2 m and 3 m lower-DC-resistance versions

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SHC68-C68-D4 provides a shielded interconnect for supported NI high-speed digital systems. NI identifies uses with digital waveform and digital pattern instruments, selected FlexRIO adapter modules and high-speed serial instruments.

Cable length and construction depend on the part number. This catalog record identifies the cable model but does not establish which length or special variant applies to the individual item.

VHDCI-to-VHDCI connection for supported digital instruments and accessories.
Mini-coaxial construction with individual conductor shielding and overall shielding.
The 1 m low-leakage variant receives additional cleaning during manufacturing to reduce induced current leakage.

Verified specifications

Technical data

Verified product specifications.

Connector configuration	68-pin VHDCI male to 68-pin VHDCI male
Characteristic impedance	50 ±10%; applies to the 0.55 m, 1 m, 1 m low-leakage and 2 m variants in the cited specification Ω
Maximum voltage	±30; connected-device operating limits must also be observed VDC
Nominal resistance by length	0.55 m: 0.3; 1 m and 1 m low-leakage: 0.5; 2 m: 1 Ω
Nominal capacitance by length	0.55 m: 60; 1 m and 1 m low-leakage: 100; 2 m: 200 pF
Nominal propagation delay by length	0.55 m: 2.7; 1 m and 1 m low-leakage: 4.9; 2 m: 9.6 ns
Nominal channel-to-channel skew by length	0.55 m: 50; 1 m and 1 m low-leakage: 50; 2 m: 75 ps

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI digital instruments

Supported instrument ecosystem

SHC68-C68-D4

Shielded digital interconnect

Example accessories

CB-2162 connector block and SMB-2163 terminal block, subject to the instrument-specific connection requirements.

Confirm the cable part number, instrument model, accessory and pinout before connection; a matching connector alone does not establish compatibility.
