National Instruments SHC68-C68-D2 Shielded digital I/O cable

1 image: Click to enlarge

National Instruments · NI digital instrumentation

SHC68-C68-D2

Name: SHC68-C68-D2
Brand: National Instruments

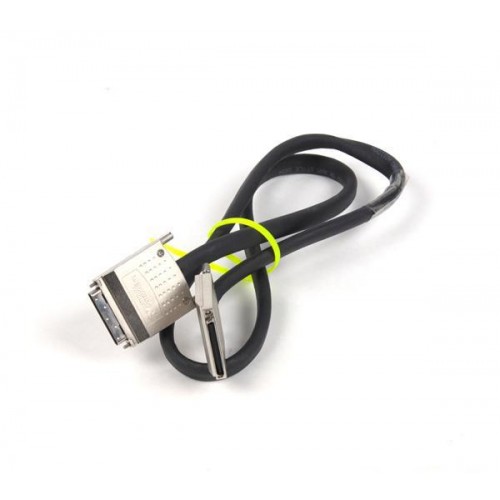

The National Instruments SHC68-C68-D2 is a shielded VHDCI cable for digital instrumentation connections. NI identifies part number 188142-01 as a 1 m assembly with two 68-position offset VHDCI connectors.

ManufacturerNational Instruments

ModelSHC68-C68-D2

Part Number188142-01

Product TypeShielded digital I/O cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SHC68-C68-D2

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

ConnectorsTwo 68-position offset VHDCI connectors

Impedance50 Ω single-ended

ShieldingSingle shield

Documented assembly188142-01: 1 m

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SHC68-C68-D2 provides a cable connection between supported NI digital instruments and external connection accessories. NI's CB-2162 user guide explicitly lists this cable assembly among the items used to connect a compatible digital waveform generator/analyzer module.

NI also documents the SHC68-C68-D2 as a connection between an NI high-speed DIO device and the NI 653x cable adapter. Select the cable by the instrument and accessory documentation rather than connector appearance alone.

VHDCI connectors at both ends.
Single-shield construction with 50 Ω single-ended impedance.
Documented for use with the NI CB-2162 single-ended digital I/O accessory.
Supports the documented NI 653x cable-adapter connection.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	188142-01
Connector configuration	Two 68-position offset VHDCI connectors
Single-ended impedance	50 Ω
Shielding	Single
Length for part number 188142-01	1 m

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI digital waveform instrumentation

Documented instrument ecosystem

SHC68-C68-D2

Instrument-to-accessory cable

Connection accessory

NI CB-2162

Confirm the instrument and accessory pairing in their manuals; disconnect power before connecting the cable.
