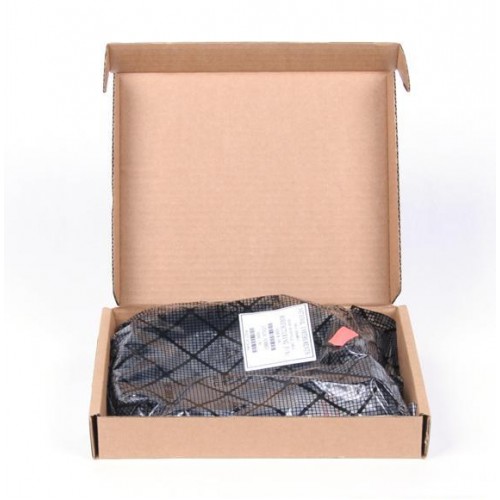

National Instruments SHC68-H1X38 Single-ended digital flying-lead cable

1 image: Click to enlarge

National Instruments · NI digital instrumentation

SHC68-H1X38

Name: SHC68-H1X38
Brand: National Instruments

The NI SHC68-H1X38 is a shielded, 50 Ω flying-lead cable for connecting supported NI digital instruments directly to header pins on custom test fixtures.

ManufacturerNational Instruments

ModelSHC68-H1X38

Part Number192681-1R5

Product TypeSingle-ended digital flying-lead cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SHC68-H1X38

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Length1.5 m

Impedance50 Ω

Instrument connection68-pin male VHDCI

Fixture connection0.1-inch signal and ground header receptacles

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This cable provides a custom-connection alternative to VHDCI-to-VHDCI cabling. Its flying leads let users connect individual signals to a breakout fixture rather than use a standard VHDCI accessory.

Each digital waveform generator/analyzer signal breaks out into separate signal and ground receptacles. With a supported instrument, this arrangement supports logic-analyzer-type connections and stimulus/response testing.

Paired signal and ground leads help preserve signal quality.
Individually shielded micro-coaxial construction with shielding on the complete cable assembly.
Wire mapping is printed on the lead pairs for connection identification.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	192681-1R5
Cable length	1.5 m
Characteristic impedance	50 Ω
Instrument-side connector	68-pin male VHDCI
Fixture-side termination	76-pin female flying leads
Header connection spacing	0.1 in
Signal wire gauge	32 AWG

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI digital instruments

Supported signal generation and acquisition hardware

SHC68-H1X38

VHDCI-to-header flying-lead interconnect

Compatibility

NI lists SHC68-H1X38 for 6535, 6536, 6537, 6535B, 6536B and 6537B digital instruments.

Check the instrument-specific cable compatibility table and pin mapping before connecting a custom fixture.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SHC68-H1X38 Cable Product PageProduct Page · ni.com

Open →

Single-Ended Digital Flying Lead Cable User GuideUser Guide · docs-be.ni.com

Open →

Digital Instrument Cable and Accessory CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the cable's manufacturer part number?

NI identifies the 1.5 m SHC68-H1X38 cable as part number 192681-1R5. The other items listed on its product page, 194096-01 and 779581-01, are accessory sets rather than alternative cable part numbers.

How do the flying leads connect to a fixture?

Each signal breaks out into two 0.1-inch header receptacles: one for the signal and one for ground.

Does NI publish a temperature rating for the complete cable?

NI does not publish a single temperature specification for the complete assembly. Individual wire or sleeving ratings must not be treated as the cable assembly's operating range.
