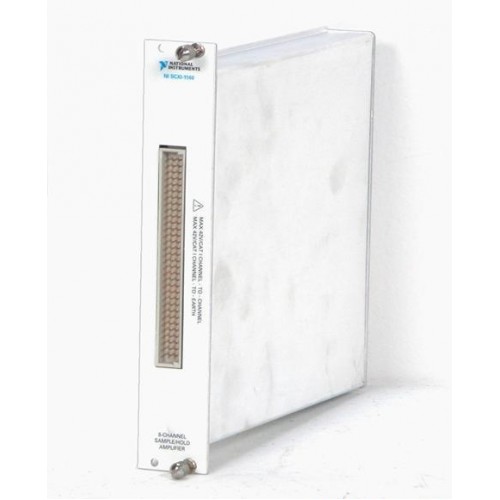

National Instruments SCXI-1140 product image 1

National Instruments SCXI-1140 product image 1 additional view

5 images: additional views below.Click to enlarge

National Instruments · SCXI

SCXI-1140

The National Instruments SCXI-1140 is an eight-channel differential amplifier module for SCXI systems, providing simultaneous input sampling and connections for external sample-and-hold timing.

ManufacturerNational Instruments

ModelSCXI-1140

Part Number776572-40

Product Type8-channel simultaneous-sampling differential amplifier module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1140

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Input channels8 differential channels

SamplingSimultaneous sample-and-hold

TimingExternal sample-and-hold timing connections

Overvoltage protection±30 V maximum, powered on

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SCXI-1140 adds simultaneous sample-and-hold signal conditioning to an SCXI measurement system. NI describes this sampling method as capturing channel values at the same instant, then multiplexing those values for analog-to-digital conversion.

NI documents cascaded configurations with SCXI-1120 or SCXI-1120D isolation amplifiers for simultaneous isolated measurements. Correct module order, cabling, driver support, and DAQ selection are configuration-dependent.

Eight simultaneously sampled differential inputs.
Connections for an external sample-and-hold timing signal.
Maximum ±30 V overvoltage protection while powered on.

Verified specifications

Technical data

Verified product specifications.

Input channel count	8 channels
Input configuration	Differential
Sampling method	Simultaneous sample-and-hold
Maximum overvoltage protection, powered on	±30 V

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Signal-conditioning platform

SCXI-1140

Simultaneous-sampling differential amplifier

System timing

NI's multichassis configuration guide gives simultaneous-sampling modules, including the SCXI-1140, priority when selecting the cabled module.

Confirm the complete chassis, DAQ, timing, cabling, and driver configuration before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI-1140 Official Product Overview (Spanish)Official Product Page · ni.com

Open →

Cascading SCXI ModulesIntegration Guide · ni.com

Open →

Types of Scanning Supported by NI Acquisition DevicesTechnical resource

Open →

Archived: Configuring a Multichassis SCXI SystemTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does simultaneous sampling mean simultaneous conversion?

Not necessarily. NI lists the SCXI-1140 under simultaneous sampling: sample-and-hold circuitry captures channel values together, after which the values are multiplexed and sent to an ADC.

Is ±30 V the specified measurement range?

No. The cited NI overview identifies ±30 V as maximum overvoltage protection while powered on, not as the measurement range.

Can the SCXI-1140 be used after an SCXI-1120D?

NI documents SCXI-1120/D first-stage modules followed by an SCXI-1140 for simultaneous isolation with M-series or E-series DAQ devices. Follow the documented cabling and driver requirements.
