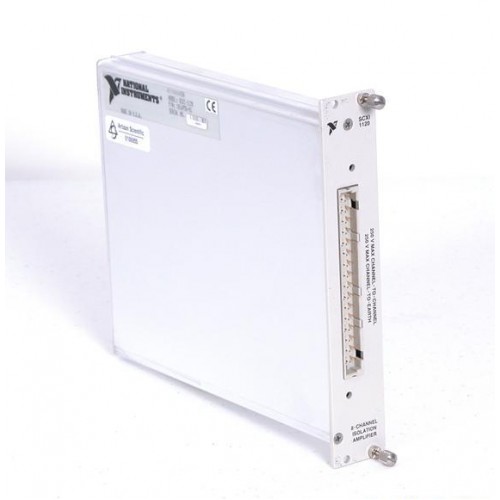

The NI SCXI-1120 is an eight-channel isolation amplifier for SCXI signal conditioning.
Core content remains expanded and crawlable.
This module provides isolated analog signal conditioning within the SCXI platform.
Each channel has two configurable gain stages and two filter stages. Both filter stages must use matching settings to achieve the required bandwidth.
Only supported values belong in the table and schema.
| Analog input channels | 8 channels |
|---|---|
| Selectable gain | 1, 2, 5, 10, 20, 50, 100, 200, 250, 500, 1000, 2000 V/V |
| Filter settings | 4 or 10000 Hz |
| Output range | ±5 V |
| Operating common-mode voltage | 250, channel-to-channel or channel-to-earth, at 50 or 60 Hz Vrms |
| Operating temperature | 0 to 50 °C |
