SCXI-1120D
1 image: Click to enlarge
National Instruments · SCXI

SCXI-1120D

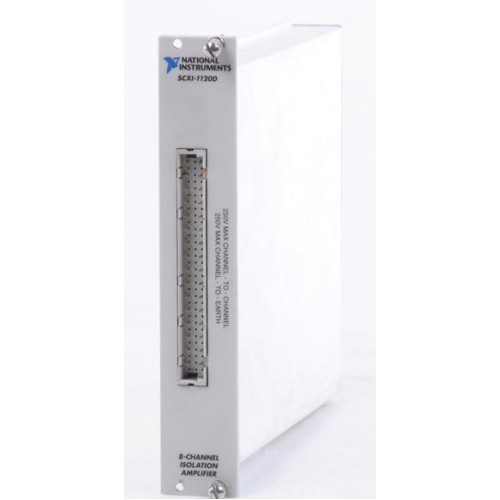

The National Instruments SCXI-1120D is an eight-channel isolation amplifier for SCXI signal-conditioning systems. It provides selectable gain and per-channel lowpass filtering.

ManufacturerNational Instruments
ModelSCXI-1120D
Part Number776572-20D
Product TypeEight-channel isolated analog input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1120D

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels8 isolated inputs
Working isolation250 Vrms
Filter settings4.5 kHz or 22.5 kHz
