National Instruments SCC-SG24 Full-bridge signal conditioning module

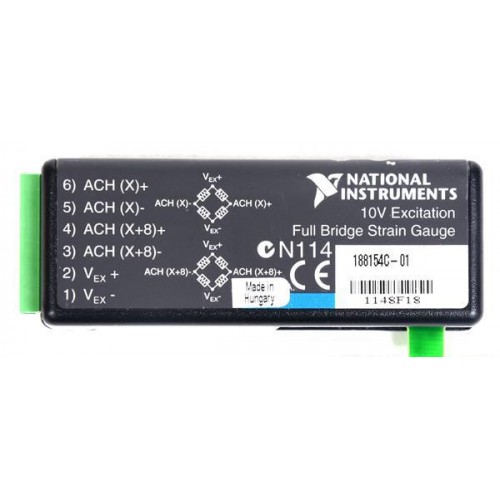

1 image: Click to enlarge
National Instruments · SCC

SCC-SG24

The NI SCC-SG24 is a dual-channel full-bridge input module providing amplification, lowpass filtering, and 10 V excitation for load cells, pressure sensors, and other full-bridge sensors.

ManufacturerNational Instruments
ModelSCC-SG24
Product TypeFull-bridge signal conditioning module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCC-SG24

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Inputs2 differential channels
BridgeFull-bridge, at least 350 Ω
Excitation10 VDC
Input range±100 mV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Within an SCC data acquisition system, the SCC-SG24 conditions full-bridge sensor signals before acquisition. NI identifies load-cell and pressure-sensor measurements, including portable field-test systems, as relevant uses.

  • Dual-channel full-bridge signal conditioning.
  • Built-in 10 V excitation.
  • Integrated amplification and lowpass filtering.
Verified specifications

Technical data

Verified product specifications.

Differential input channels2
Input range±100 mV
Fixed gain100 V/V
Bandwidth1.6; single-pole buffered RC filter kHz
Excitation voltage+10, ±0.05% VDC
Excitation current drive60; assumes two 350 Ω full bridges mA
Maximum output range±10 VDC
Operating temperature0 to 50 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCC

Signal conditioning platform

SCC-SG24

Full-bridge input module

Compatibility

Supported by the SCC-68 carrier.

Confirm sensor resistance, excitation requirements, and carrier power budget before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCC-SG Series Strain Gage Modules User Guide and SpecificationsManual · docs-be.ni.com
Open →
SCC-68 User Guide and SpecificationsCarrier Manual · download.ni.com
Open →
SCC-SG24 specifications, wiring, and scaling guidanceTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
SCC-CI20View product →
Related model
SCC-FT01View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which bridge configuration does the SCC-SG24 support?

Full-bridge configurations of at least 350 Ω.

Does it provide sensor excitation?

Yes. It provides built-in 10 V excitation.

Can it be installed in an SCC-68?

Yes. NI lists the SCC-SG24 as an SCC-68-compatible load-cell input module.

Ask SOHO AssistantProduct & compatibility help
