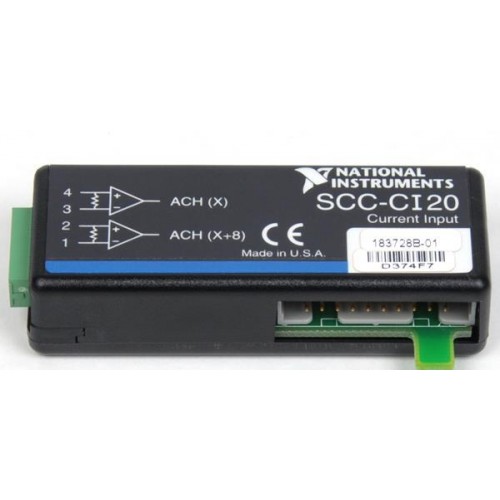

The NI SCC-CI20 conditions two current inputs for an E Series DAQ device using precision resistor conversion and buffered voltage outputs.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The module uses 249 Ω input resistors and differential instrumentation amplifiers. It supports standalone conditioning stages or first-stage placement in a dual-stage SCC configuration.
Verified product specifications.
| Input channels | 2 differential |
|---|---|
| Input range | 0–20 mA |
| Output range | 0 to +5 V |
| Input resistance | 249 Ω |
| Input resistor tolerance | 0.05 % |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Signal conditioning platform
Current input module
SC-2345/2350 carriers; the guide lists SCC-PWR01 or SCC-PWR02 with PS01 among supported power arrangements.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies it as a current input module.
The documented setup requires an SC-2345/2350 carrier, SCC power module, and 68-pin E Series DAQ device.
