National Instruments · SCC

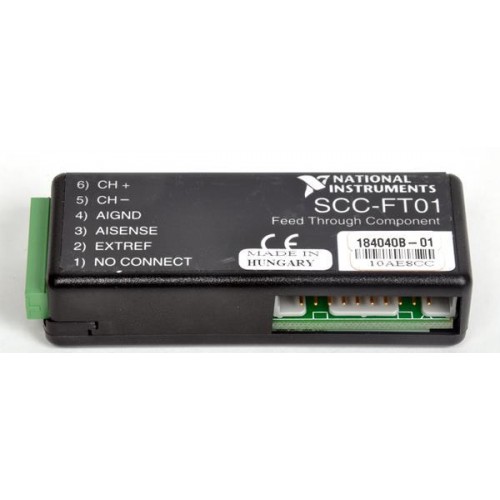

SCC-FT01

Name: SCC-FT01
Brand: National Instruments

The NI SCC-FT01 is an SCC feedthrough and breadboard module, not a matrix switch.

ManufacturerNational Instruments

ModelSCC-FT01

Part Number777459-01

Product TypeFeedthrough and breadboard module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCC-FT01

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Analog input1 differential or 2 single-ended channels

Analog output1 channel in an SC-2345 AO socket

Field connection6-pin screw terminals

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Connects DAQ analog signals through an SCC carrier; its breadboard supports custom conditioning circuits.

Direct analog feedthrough.
Breadboard accommodates up to four 8-pin ICs.
Customizable analog, digital, and counter connections.

Verified specifications

Technical data

Verified product specifications.

Dimensions	8.89 × 2.92 × 1.85 cm
Terminal wire size	28–16 AWG
Power requirement	None when unmodified

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SC-2345

SCC carrier

SCC-FT01

Feedthrough/breadboard module

Compatibility

NI documents SC-2345/2350 systems with 68-pin E Series DAQ devices.

Unmodified modules require single-stage AI sockets J1–J8 or AO sockets J17–J18 on SC-2345; incorrect placement can damage the DAQ device.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCC-FT01 Feedthrough Module User GuideUser Guide And Specifications · docs-be.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does it require power?

Not when unmodified; custom circuitry changes the requirements.

Can it support custom circuits?

Yes. Follow NI's customization instructions, including removal of resistors R1–R5.
