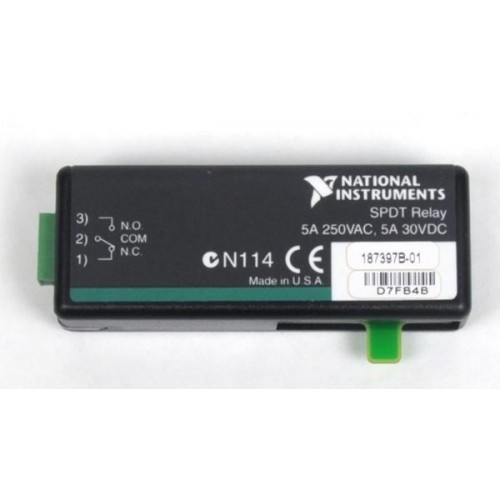

The National Instruments SCC-RLY01 is a single-channel SPDT relay module for SCC systems. Switching limits depend on the carrier.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The SCC-RLY01 fits into the SCC-68 carrier ecosystem alongside analog-input and digital-I/O SCC modules. It provides relay switching rather than analog signal conditioning.
Verified product specifications.
| Contact configuration | SPDT (Form C), nonlatching |
|---|---|
| SC-2345 nominal switching capacity | 5 A at 30 VAC or 30 VDC |
| SCC-68 nominal switching capacity | 5 A at 250 VAC or 30 VDC |
| Operate time | 5 typical; 10 maximum ms |
| Operating temperature | 0 to 50 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Supported carrier
SPDT relay module
E/M Series P0 digital line.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
Pin 1: NC; pin 2: COM; pin 3: NO.
It connects COM to NO; digital low connects COM to NC.
