National Instruments · SCC

SCC-DO01

Name: SCC-DO01
Brand: National Instruments

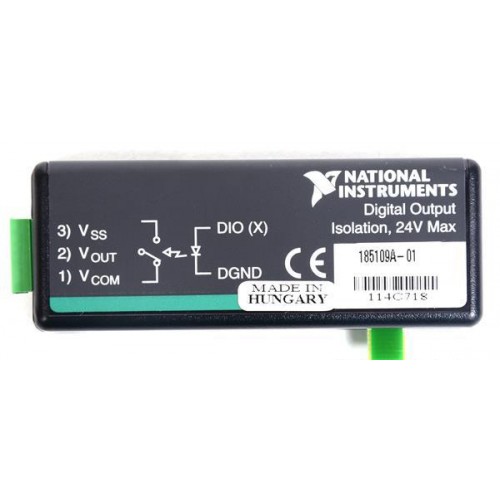

The SCC-DO01 provides one optically isolated digital output for NI SCC systems.

ManufacturerNational Instruments

ModelSCC-DO01

Part Number777459-12

Product TypeIsolated digital output module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCC-DO01

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels1

External supply5–24 VDC

Power-up stateSelectable high or low

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

A PhotoMOS relay and load resistor form the output circuitry.

Optical isolation.
Logic-state LED.
Clamping diodes for spike protection.

Verified specifications

Technical data

Verified product specifications.

Continuous load current	Configuration 1: 86; Configuration 2: 120 mA
Propagation delay, typical	Low-to-high: 400; high-to-low: 300 µs
Digital power, maximum	69 mW
Operating temperature	0–50 °C
Specification conditions	Typical at 25 °C unless otherwise stated

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SC-2345/2350

Carrier

SCC-DO01

Output module

Compatibility

The guide specifies SC-2345/2350 carriers and a 68-pin E Series DAQ device.

Load-current limits depend on wiring configuration; consult the guide diagrams.
