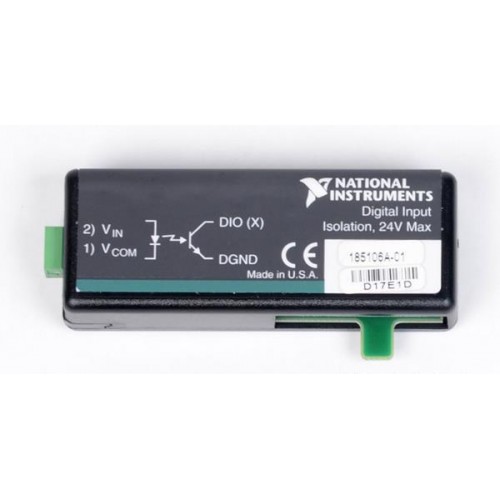

Name: SCC-DI01
Brand: National Instruments

The NI SCC-DI01 is a single-channel, optically isolated digital input module for SCC systems. It senses AC and DC signals and provides an input-status LED.

ManufacturerNational Instruments

ModelSCC-DI01

Part Number777459-11

Product TypeOptically isolated digital input module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCC-DI01

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels1 digital input

Signal sensingAC and DC

SC-2345 installationSockets J9 through J16

Maximum input30 VDC or 30 VAC

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SCC-DI01 adds isolated digital sensing to an SCC-based DAQ system. On the SC-2345 carrier, its input routes to a digital I/O line of the connected multifunction DAQ device.

Optical isolation for digital input sensing.
Supports both AC and DC input signals.
Status LED provides visual input-state indication.

Verified specifications

Technical data

Verified product specifications.

Input channels	1
Maximum input voltage	30 VDC or 30 VAC
Isolation from computer ground	42 VDC
Propagation delay, low to high	10 µs
Propagation delay, high to low	250 µs
Maximum digital power	61 mW
Dimensions	88.9 × 29.2 × 18.5 mm
Mass	28.6 g
Operating temperature	0 to 50 °C
Specification conditions	Typical at 25 °C unless otherwise stated
