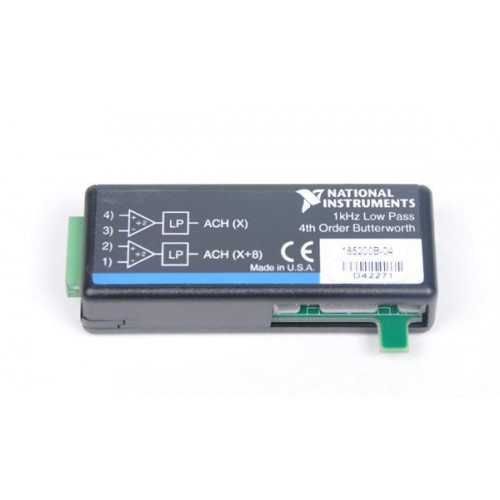

The National Instruments SCC-LP04 is a two-channel, 1 kHz lowpass filter module for SCC signal conditioning systems.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This SCC module provides analog filtering ahead of an E Series DAQ device.
Verified product specifications.
| Input configuration | 2 differential channels |
|---|---|
| Input range | ±10 V |
| Output range | ±5 V |
| Gain | 0.5 V/V |
| −3 dB cutoff | 1 kHz |
| Rolloff | 80 dB/decade |
| Maximum analog power | 475 mW |
| Operating temperature | 0 to 50 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Signal conditioning
1 kHz filtering
Documented setup: SC-2345/2350 carrier, SCC power module, and 68-pin E Series DAQ device.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies it as a two-channel, 1 kHz lowpass filter module.
SCC-LP04 has a 1 kHz cutoff; SCC-LP01 has a 25 Hz cutoff.
