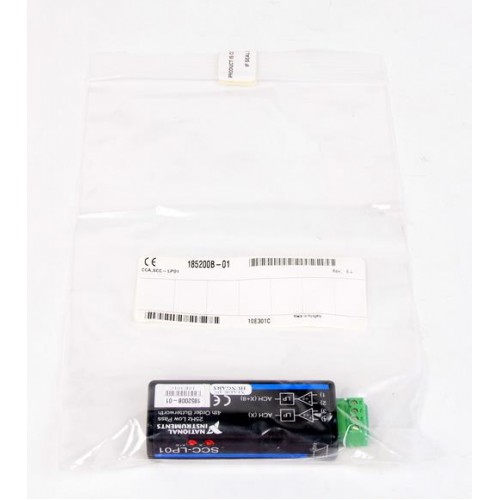

1 image: Click to enlarge

National Instruments · SCC

SCC-LP01

Name: SCC-LP01
Brand: National Instruments

The NI SCC-LP01 provides two-channel, 25 Hz lowpass filtering for SCC signal-conditioning systems.

ManufacturerNational Instruments

ModelSCC-LP01

Product TypeLowpass filter module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCC-LP01

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Channels2 differential

Cutoff25 Hz

Input range±10 V

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The module conditions analog signals before acquisition by an E Series DAQ device.

Fourth-order Butterworth response.
Supports floating or ground-referenced sources.
Supports single-stage or dual-stage conditioning.

Verified specifications

Technical data

Verified product specifications.

Input channels	2 differential
−3 dB cutoff	25 Hz
Input range	±10 V
Output range	±5 V
Gain	0.5 V/V
Rolloff	80 dB/decade

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCC

Signal conditioning

SCC-LP01

Lowpass filtering

Compatibility

Installs in SC-2345 analog input sockets.

Check carrier socket assignments and voltage scaling before use.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCC-LP Series Lowpass Filter Modules User Guide and SpecificationsUser Guide And Specifications · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How does SCC-LP04 differ?

SCC-LP04 has a 1 kHz cutoff; SCC-LP01 has a 25 Hz cutoff.
