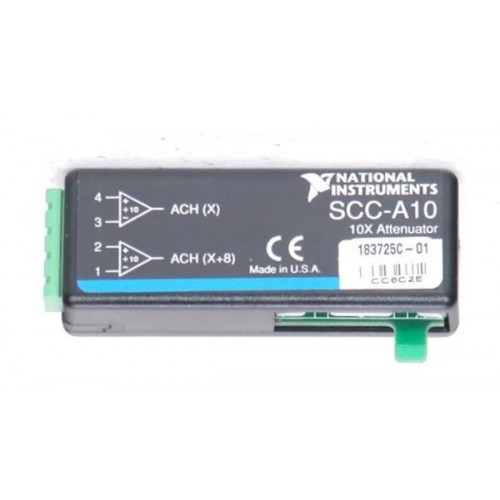

National Instruments SCC-A10 Two-channel voltage attenuator analog input module
1 image: Click to enlarge
National Instruments · SCC

SCC-A10

The NI SCC-A10 is a two-channel voltage attenuator analog input module for SCC systems. Each channel divides the input voltage by 10 and provides differential instrumentation-amplifier buffering.

ManufacturerNational Instruments
ModelSCC-A10
Part Number777459-06
Product TypeTwo-channel voltage attenuator analog input module
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCC-A10

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels2 analog input channels
Attenuation10:1
Input range±60 VDC
Part number777459-06
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The SCC-A10 conditions voltage signals within the NI SCC ecosystem. Its low-impedance amplifier outputs support DAQ scanning, while built-in high-impedance bias resistors accommodate floating or ground-referenced sources without external bias resistors.

Installation requires an SCC-68 or SC-2345/2350 carrier, a 68-pin E/M Series DAQ device, and appropriate cabling and power.

  • Independent divide-by-10 attenuation on both channels.
  • Differential instrumentation amplifiers provide buffered, low-impedance outputs.
  • Built-in bias resistors support floating and ground-referenced input signals.
  • Includes DAQ overvoltage protection and supports cascading with other SCC modules.
Verified specifications

Technical data

Verified product specifications.

Input channels2 differential
Input range±60 VDC
Attenuation ratio10:1
Input impedance1, powered on or off MΩ
Bandwidth (−3 dB)10 kHz
Analog power consumption100 maximum mW
I/O connectors20-pin right-angle male connector; 4-pin screw terminal
Operating temperature0 to 50 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCC

Signal conditioning platform

SCC-A10

Two-channel voltage attenuation

Carriers

SCC-68 or SC-2345/2350

Measurement Category I only; not for Categories II–IV. Observe the manual's 42.4 Vpeak or 60 VDC safety limit.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI SCC-A10 Product PageOfficial Product Page · ni.com
Open →
SCC-A10 Voltage Attenuator Module User GuideUser Guide And Specifications · download.ni.com
Open →
SCC-A10 Wiring, Scaling, Specifications, and Pin AssignmentsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
SCC-PWR01View product →
Related model
SCC-PWR02View product →
FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the SCC-A10 a matrix switch?

No. NI identifies the SCC-A10 as a two-channel voltage attenuator analog input module for SCC.

Can it accept floating signal sources?

Yes. Built-in bias resistors allow floating or ground-referenced inputs without additional external bias resistors.

How is attenuation handled in voltage readings?

If software has not already applied SCC-A10 scaling, multiply the DAQ voltage reading by 10.
