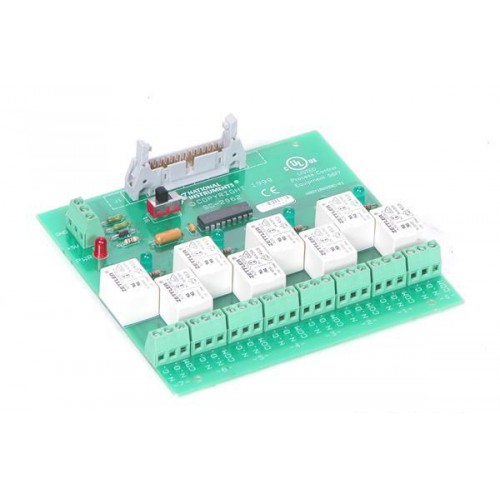

National Instruments SC-2062 Electromechanical relay digital signal conditioning accessory

1 image: Click to enlarge

National Instruments · NI DAQ digital signal conditioning

SC-2062

Name: SC-2062
Brand: National Instruments

The National Instruments SC-2062 is a digital signal conditioning accessory with eight independent SPDT nonlatching electromechanical relays and a 26-pin connector.

ManufacturerNational Instruments

ModelSC-2062

Part Number776336-02 · 776336-12

Product TypeElectromechanical relay digital signal conditioning accessory

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SC-2062

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Relay count8 independent relays

Contact configurationSPDT

Relay operationNonlatching electromechanical

Connector26-pin

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SC-2062 belongs to the SC-206X family of digital signal conditioning boards. Its eight independent electromechanical relays provide SPDT, nonlatching switching for a DAQ digital I/O system.

NI documents connections through the TBX-68T and CB-68T terminal blocks using an NB7 ribbon cable. NI also documents connection to J8 on the SC-2056, with a warning that shared digital signals must not be double-driven.

Eight independent electromechanical relay channels.
SPDT contact configuration with nonlatching operation.
26-pin connector for the accessory interface.
Documented NB7 cable connection to TBX-68T and CB-68T digital signal conditioning connectors.

Verified specifications

Technical data

Verified product specifications.

Number of relays	8
Contact configuration	Single-pole double-throw (SPDT)
Relay mechanism	Electromechanical
Relay operation	Nonlatching
Connector pin count	26 pins
Manufacturer-listed configuration 776336-02	SC-2062 with 26-conductor 0.2 m cable
Manufacturer-listed configuration 776336-12	SC-2062 with 26-conductor 0.4 m cable

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SC-206X

Digital signal conditioning board family

SC-2062

Eight-relay accessory

Terminal-block connection

TBX-68T or CB-68T through an NB7 ribbon cable.

Confirm host wiring and relay load ratings before use. On the SC-2056, do not double-drive the digital signals shared by J8 and J4–J7.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

CB-27T, TBX-68T, and CB-68T Isothermal Terminal Blocks Installation GuideInstallation Guide · download.ni.com

Open →

Using Modules and Accessories with the SC-2056Technical Note · download.ni.com

Open →

NI 435x User ManualHost-system User Manual · docs-be.ni.com

Open →

Terminal-block configuration guide for SC-206X accessoriesTechnical resource

Open →

SC-2056 accessory connections and shared-signal precautionsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the SC-2062 a matrix switch?

NI identifies the SC-2062 as an accessory with eight independent SPDT nonlatching electromechanical relays, rather than a matrix switch.

Which cable connects the SC-2062 to a TBX-68T or CB-68T?

NI specifies the NB7 ribbon cable for connecting SC-206X digital signal conditioning boards to these terminal blocks.

Can the SC-2062 connect to the SC-2056?

Yes. NI documents connection to J8 on the SC-2056. J8 shares digital signals with J4–J7, so those signals must not be double-driven.

What do part numbers 776336-02 and 776336-12 identify?

NI lists 776336-02 as the SC-2062 with a 26-conductor 0.2 m cable and 776336-12 as the configuration with a 0.4 m cable. The catalog record does not identify which configuration applies or establish that a cable is included.
