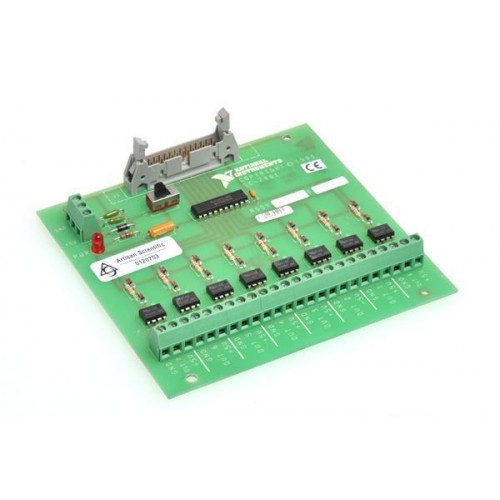

The National Instruments SC-2061 is an SC-206X digital conditioning board providing eight optically isolated digital outputs.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The SC-2061 belongs to NI's SC-206X digital signal conditioning family. It provides isolated digital outputs rather than matrix-switch routing.
NI documents connection to the SC-2056 at J8. Because J8 shares digital signals with J4–J7, system wiring must avoid double-driving those signals.
Verified product specifications.
| Digital output channels | 8 channels |
|---|---|
| Output isolation | Optically isolated |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Digital signal conditioning family
Isolated digital output board
Connector J8; shared digital signals require attention to other connected accessories.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. NI identifies it as an eight-output, optically isolated digital conditioning accessory.
NI specifies connector J8. J8 and J4–J7 share digital signals, so connected devices must not double-drive those signals.
