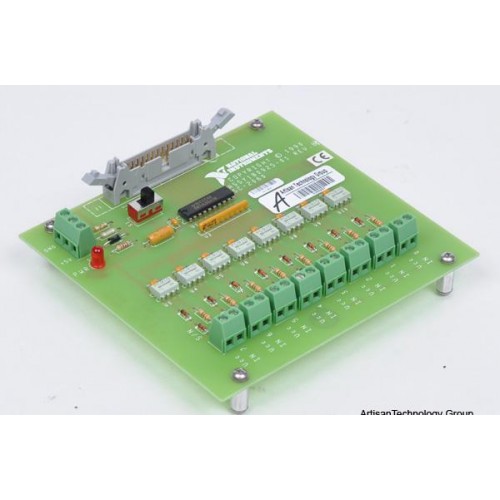

National Instruments SC-2060 Optically isolated digital input signal conditioning board

1 image: Click to enlarge

National Instruments · NI DAQ signal conditioning accessories

SC-2060

Name: SC-2060
Brand: National Instruments

The National Instruments SC-2060 is an SC-206X Series digital signal conditioning board with eight optically isolated digital inputs. NI documents connections through compatible terminal-block accessories and the SC-2056 adapter board.

ManufacturerNational Instruments

ModelSC-2060

Part Number776336-00 · 776336-10

Product TypeOptically isolated digital input signal conditioning board

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SC-2060

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Input channels8 digital inputs

Isolation methodOptical isolation

Product familySC-206X digital signal conditioning boards

Terminal-block connectionNB7 cable with TBX-68T or CB-68T

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SC-2060 provides eight optically isolated digital input channels within NI's SC-206X signal conditioning family. Its documented function is digital input conditioning, distinct from the digital output and electromechanical relay functions of other SC-206X models.

NI's terminal-block installation guide specifies an NB7 ribbon cable for connecting the SC-2060 to the TBX-68T or CB-68T nonbuffered, individual-line switch-selectable I/O connector. A separate NI accessory note permits connection to J8 of the SC-2056, with precautions for shared digital signals.

Eight digital input channels for signal conditioning.
Optically isolated input implementation.
Documented NB7 cable connection to TBX-68T and CB-68T terminal blocks.
Documented connection to connector J8 of the SC-2056.

Verified specifications

Technical data

Verified product specifications.

Digital input channels	8 channels
Input isolation	Optically isolated
Cable for TBX-68T / CB-68T connection	NB7
SC-2056 connection point	J8
Manufacturer configuration 776336-00	SC-2060 with 26-conductor 0.2 m cable
Manufacturer configuration 776336-10	SC-2060 with 26-conductor 0.4 m cable

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SC-206X Series

Digital signal conditioning board family

SC-2060

Eight-channel optically isolated digital input board

Terminal-block integration

TBX-68T or CB-68T using an NB7 cable and the documented nonbuffered I/O configuration.

When using SC-2056 connector J8, avoid double-driving digital signals shared with J4–J7.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

CB-27T, TBX-68T, and CB-68T Isothermal Terminal Blocks Installation GuideInstallation Guide · download.ni.com

Open →

Using Modules and Accessories with the SC-2056Accessory Connection Note · download.ni.com

Open →

NI Part-Number Reference for Legacy DAQ and Signal Conditioning ProductsManufacturer Part-number Reference · ni.com

Open →

Terminal-Block Configuration and NB7 Cable Connection GuideTechnical resource

Open →

SC-2056 Accessory Connections and Shared-Signal PrecautionsTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Alternatives & system components

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the SC-2060 a matrix switch?

No. NI identifies the SC-2060 as an accessory with eight optically isolated digital inputs, not as a matrix switch.

Which cable connects the SC-2060 to a TBX-68T or CB-68T?

NI specifies the NB7 ribbon cable. The installation guide places the SC-2060 on the nonbuffered, individual-line switch-selectable I/O connection configured for input.

Can the SC-2060 connect to the SC-2056?

Yes. NI documents connection to J8 of the SC-2056. J8 shares digital signals with J4–J7, so connected circuitry must not double-drive those signals.

What is the difference between part numbers 776336-00 and 776336-10?

NI lists 776336-00 as the SC-2060 configuration with a 26-conductor 0.2 m cable and 776336-10 with a 26-conductor 0.4 m cable. These manufacturer configurations do not establish which cable accompanies this catalog item.
